1. FUNCTIONS AND CONFIGURATION

1 - 13

1.7.2 Removal and reinstallation of the front cover

CAUTION

Before removing or installing the front cover, turn off the power and wait for 15

minutes or more until the charge lamp turns off. Then, confirm that the voltage

between P+ and N- is safe with a voltage tester and others. Otherwise, an electric

shock may occur. In addition, when confirming whether the charge lamp is off or

not, always confirm it from the front of the servo amplifier.

(1) For MR-J4-700B

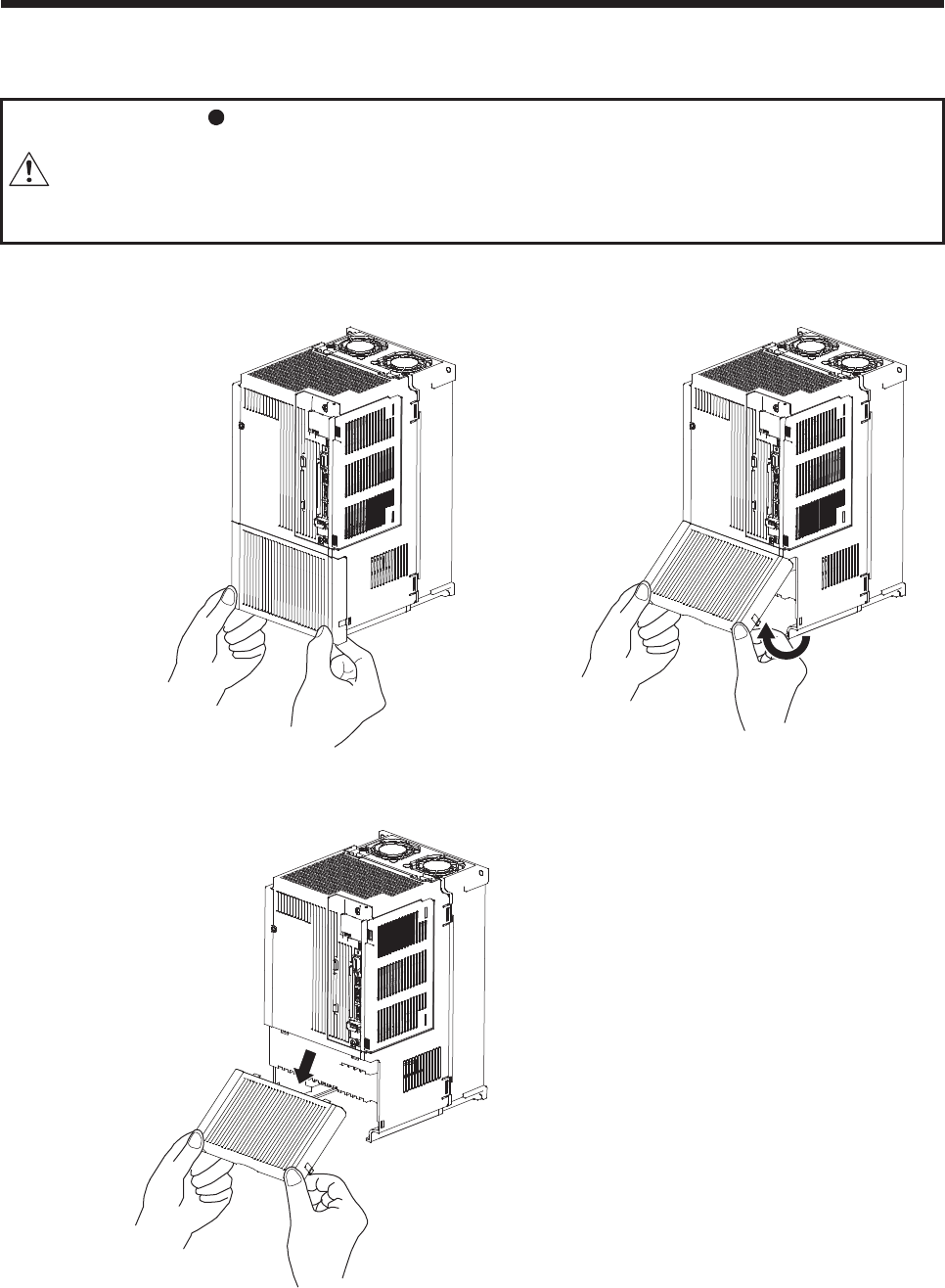

Removal of the front cover

1) Hold the ends of lower side of the front cover with

both hands.

2) Pull up the cover, supporting at point A).

3) Pull out the front cover to remove. Hold the ends of

lower side of the front cover with both hands.
