-22

Connecting the Projector to a Computer

Optional

accessory

DVI to 15-pin D-sub adaptor

Type: AN-A1DV (7.9" (20 cm))

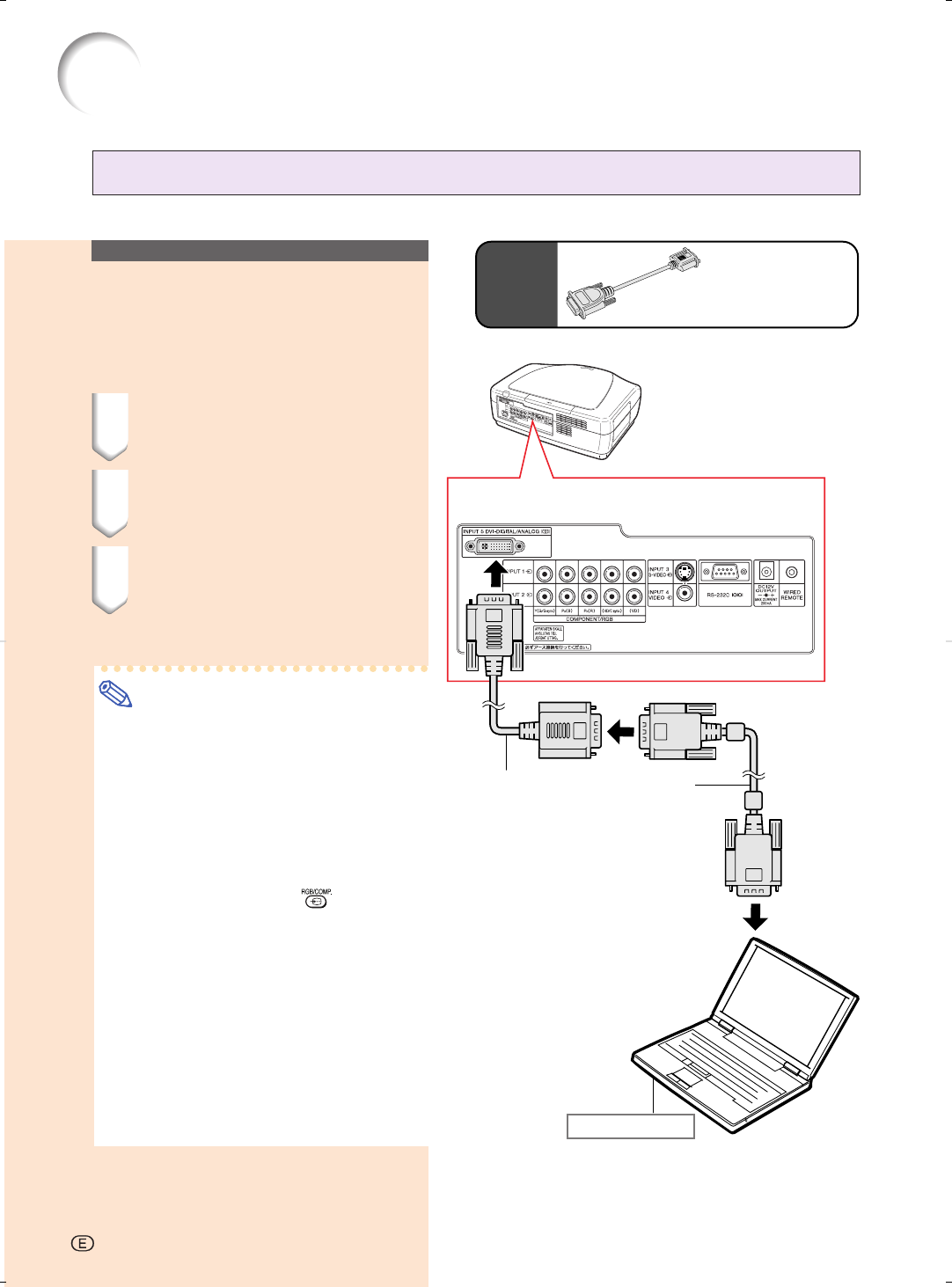

Connecting to a Computer

Using the DVI to 15-pin

D-sub Adaptor and the

RGB Cable (INPUT 5)

1 Connect a DVI to 15-pin D-sub

adaptor to the projector.

2 Connect the above adaptor to

an RGB cable.

3 Connect the above cable to the

computer.

• Secure the connectors by tightening the

thumbscrews.

Note

• See “Computer Compatibility Chart” on

page 88 for a list of computer signals

compatible with the projector. Use with

computer signals other than those listed

may cause some of the functions not to

work.

• When connecting the projector to a com-

puter in this way, select “A. RGB” for “Sig-

nal Type” in the “Options” menu, or select

the “A. RGB” by pressing

on the re-

mote control. See page 69.

• A Macintosh adaptor may be required for

use with some Macintosh computers.

Contact your nearest Authorized

SharpVision Service Center or Dealer.

• Depending on the computer you are us-

ing, an image may not be projected un-

less the signal output setting of the com-

puter is switched to the external output.

Refer to the computer operation manual

for switching the computer signal output

settings.

To RGB output terminal

Notebook computer

RGB Cable

(commercially available)

DVI to 15-pin D-sub adaptor

(sold separately)

-22

Connecting the Projector to Other Devices

To INPUT 5 terminal

XV_Z12000_E_US_p15_26.p65 03.9.26, 6:37 PM22
