Adjustment buttons
(", ', \, |)
For selecting menu items.
ENTER button
For setting items selected
or adjusted on the menu.
UNDO button
For undoing an operation or
returning to the default
settings.
Lens shift dial
Zoom knob
Focus ring
MENU button
For displaying adjustment
and setting screens.
RESIZE button
For switching the screen
size (SIDE BAR, SMART
STRETCH, etc.).
INPUT button
For switching input mode
1, 2, 3, 4 or 5.
ON button
For turning the power on.
37
STANDBY button
For putting the projector
into the standby mode.
Temperature warning
indicator
When the internal
temperature rises, this
indicator will illuminate
red.
Lamp indicator
Illuminates blue, indicating
normal function. Replace
the lamp when the
indicator illuminates red.
Power indicator
Illuminates red, when the
projector is in standby.
When the power is turned
on, this indicator will
illuminate blue.
34
Adjustment foot
Lens cap
Intake vent
27
Adjustment foot
13
Remote control
sensor

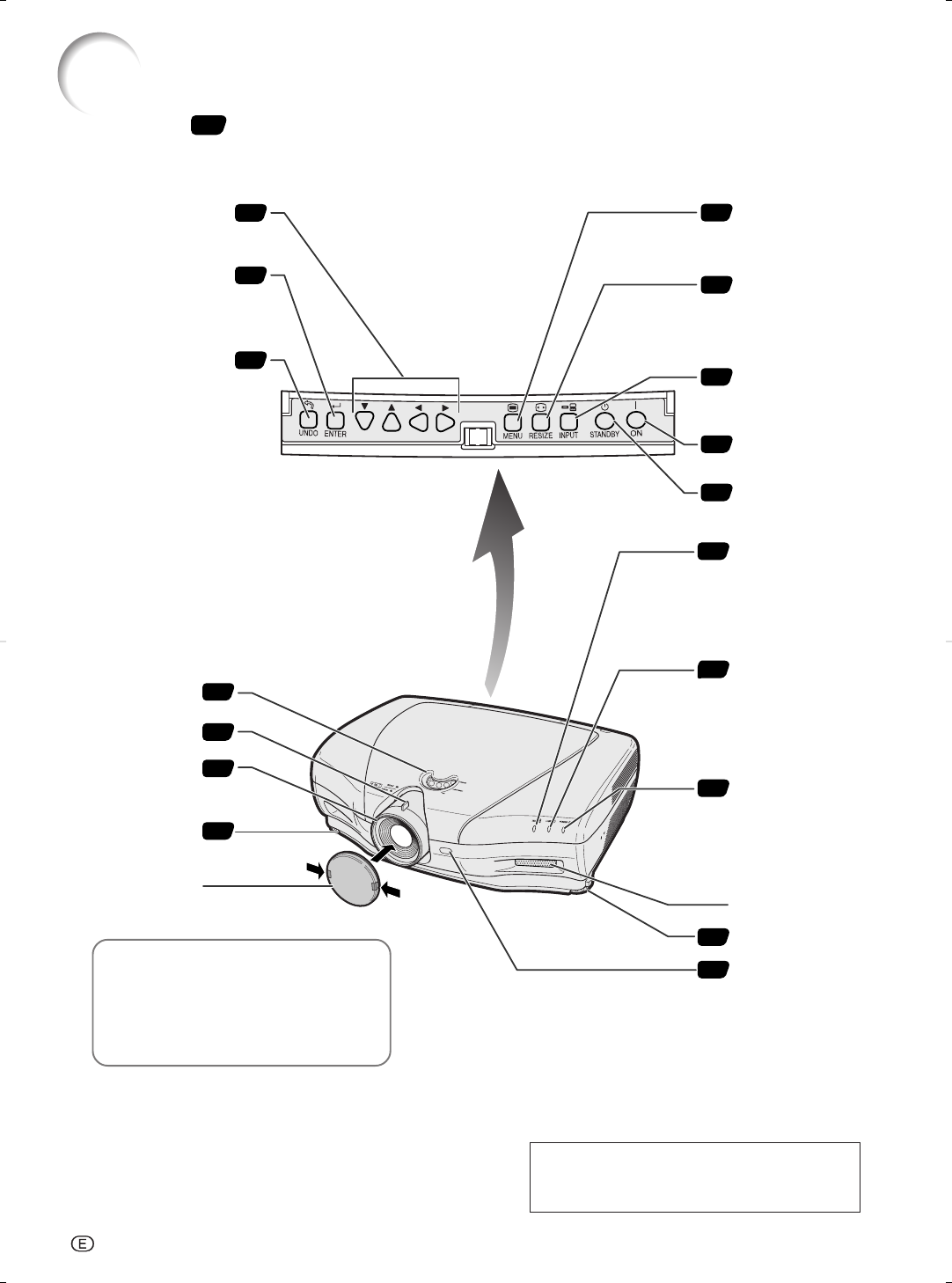

Projector (Front and Top View)
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Attaching and removing the lens cap
• Press on the two buttons of the lens cap
and attach it on the lens. Then release
the buttons to lock it in place.
• Press on the two buttons of the lens cap
and remove it from the lens.
In this operation manual, the illustration and the
screen display are simplified for explanation,
and may differ slightly from actual display.
