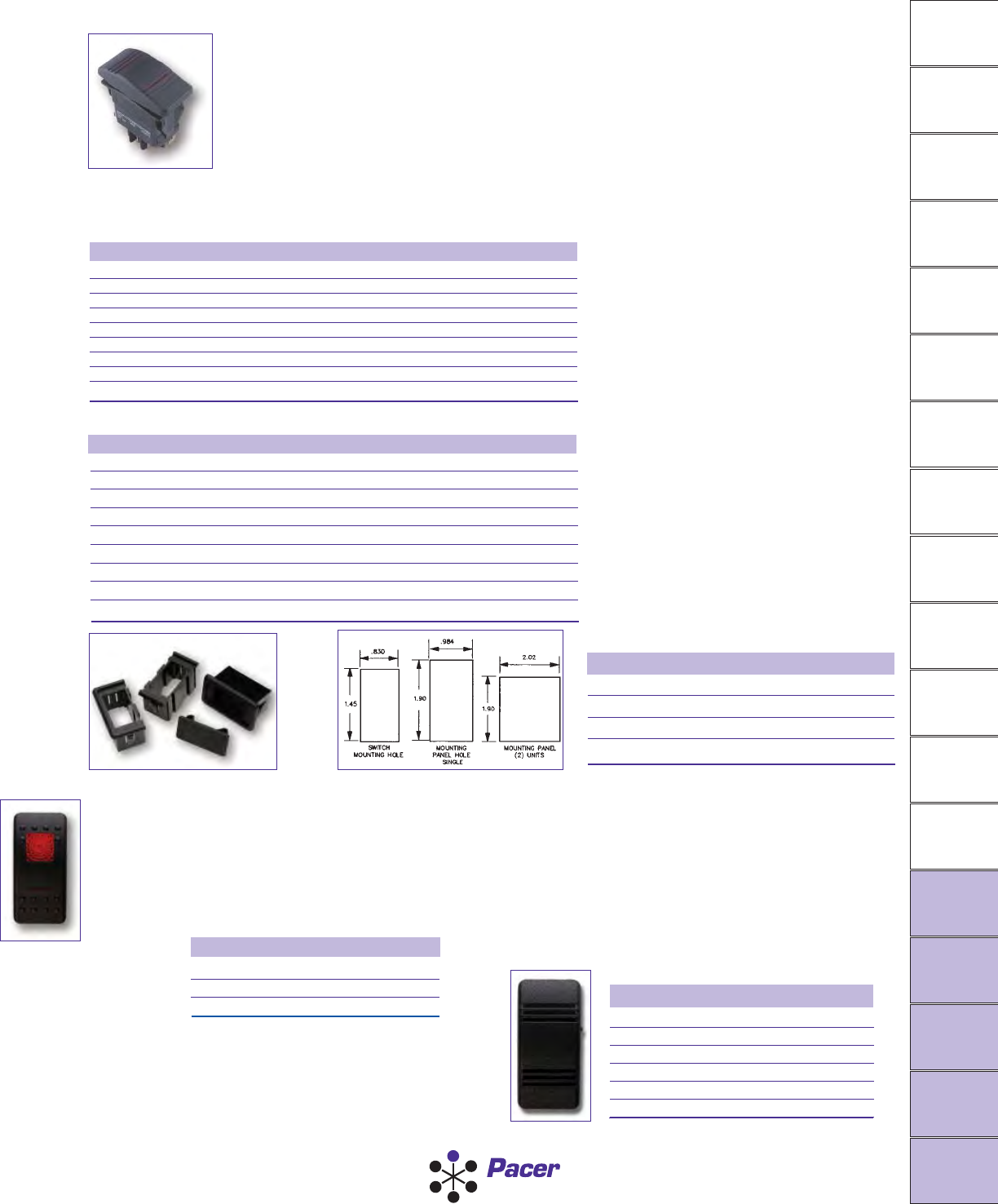

VSERIES CONTURA II & III
The V-Series CONTURA II and III versions, with sealed front
panel components, are certified to IP66 and IP68, signifying
complete protection against dust, prolonged spray and
submersion under pressure. Contura’s are recognized at
UL1500 - Ignition Protection for Marine Products. These
switches feature removable actuator styles and colors,
available in single and double pole configurations, and can
be illuminated with bar or square shaped lenses. All
switches are 12V black base. Actuators are now sold
separately. Pacer has a full line of screened Contura II
actuators that display both the Legend and ISO symbol.
NOTE: All switches and actuators are sold separately.
CHARACTERISTICS:
• Base Material: Polyester
• Dielec
tric Strength 2000V RMS
• Insulation Resistance 50 MegOhms
• Rating: 20A 12V
CERTIFICATIONS:
UL and CSA Tested in accordance with
r
equirements of MIL STD 202F
MOUNTING METHOD:
• Panel mounting hole: See Dimensional
Specifications
.
• Can be mounted directly on the panel or
mounted using the Contura mounting panel.
TERMINATION:
.250 Quick Connects with Barriers
DESCRIPTION:
S.P.S.T. = Single Pole, Single Throw
D
.P.S.T. = Double Pole, Single Throw
S.P.D.T. = Single Pole, Double Throw
D.P.D.T. = Double Pole, Double Throw
IND. = Independent Lamp
DEP. = Dependent Lamp
*For more available options, contact Pacer Group
PART NUMBER SWITCH FUNCTION LAMPS / VOLTS DESCRIPTION
ES-VADA ON-OFF 1 DEP. / 12V D.P.S.T.
ES-VCDA ON-(OFF) 1 DEP. / 12V D.P.S.T.
ES-VDDA ON-ON 2 DEP. / 12V D.P.D.T.
ES-VFDA ON-(ON) 2 DEP. / 12V D.P.D.T.
ES-VJDA ON-OFF-ON 2 DEP. / 12V D.P.D.T. CTR OFF
ES-VKDA ON-OFF-(ON) 2 DEP. / 12V D.P.D.T. CTR OFF
MOMENTARY
ES-VBDA (ON)-OFF 1 DEP. / 12V D.P.S.T.
ES-
VLDA (ON)-OFF-(ON) 2 DEP. / 12V D.P.D.T. CTR OFF
DOUBLE POLE SWITCHES
ORDERING INFORMATION: Order by the piece.
PART NUMBER DESCRIPTION
ES-CVMS SINGLE MOUNTING PANEL
ES-CVMM MIDDLE PANEL
ES-CVME END PANEL
ES-CVHP HOLE PLUG
MOUNTING PANELS
PANEL CUTOUTS
PANEL CUTOUTS
CONTURA III ACTUATORS
All actuators are constructed of Black or White thermoplastic
polycarbonate with a hard nylon over-lay. Styling incorporates
three rows of bars on top and bottom. Actuators contain one
narrow bar lens for single pole circuits or two narrow bar lens on
top and bottom for double pole circuits. All lenses are red.
Available in: Black or White, No Lens, Single or Double Lens.
PART NUMBER DESCRIPTION
ESA-CZC Black w/No Lens
ESA-CMC Black w/SGL Red Lens
ESA-CNC Black w/DBL Red Lens
ESA-CZY White w/No Lens
ESA-CMY White w/SGL Red Lens
ESA-CNY White w/DBL Red Lens
CONTURA II ACTUATORS
All actuators are constructed of black thermoplastic polycarbonate
with a hard nylon over-lay. Actuators contain one square red lens for
single pole circuits or one square red lens and one narrow bar lens on
bottom for double pole circuts
Available in: No Lens, Single or Double Lens.
PART NUMBER DESCRIPTION
ESA-AZC Black w/No Lens
ESA-ARC Black w/SGL Red Lens
ESA-ASC Black w/DBL Red Lens
ES-V1DA ON-OFF 1 DEP. / 12V S.P.S.T.
ES-V4DA ON-ON 2 IND. / 12V S.P.D.T.
ES-V5DA ON-(ON) 2 DEP. / 12V S.P.D.T.
ES-V6DA ON-OFF-ON 2 DEP. LAMPS / 12V S.P.D.T. CTR OFF
MOMENTARY
ES-V2DA (ON)-OFF 1 DEP. / 12V S.P.S.T.
ES-V3DA ON-(OFF) 1 DEP. / 12V S.P.S.T.
ES-V8DA (ON)-OFF-(ON) 2 DEP. / 12V S.P.D.T. CTR OFF
ES-V7DA ON-OFF-(ON) 2 DEP. / 12V S.P.D.T. CTR OFF
SINGLE POLE SWITCHES
PART NUMBER SWITCH FUNCTION LAMPS / VOLTS DESCRIPTION
