PACER GROUP  SARASOTA
CORPORATE HEADQUARTERS
NA
TIONAL AND OEM SALES
18004249549 • FAX: 9413799015
PACER GROUP  FT. LAUDERDALE
EAST COAST SALES AND
AFTER
MARKET SALES
18006345031 • FAX: 9547638062
30 www.pacergroup.net
WIRE & CABLE
NETWORK
C
ABLE
COAX CABLE
& CONN.
MULTI-
CONDUCTOR
AUDIO CABLES
HEAT SHRINK
TUBING
ROUTING/
BUNDLING
MATERIALS
CABLE TIES/
T
APES
TERMINALS
MOISTURE-
RESISTANT
CONN.
LUGS & BOOTS
I.D. PRODUCTS
& LABELERS
TOOLS
BREAKERS
& FUSES
TERMINAL
BLOCKS
& B
US BARS
SWITCHES
SOLENOIDS
ACRS
LIGHTS
& METERS
ENCLOSURES
Group

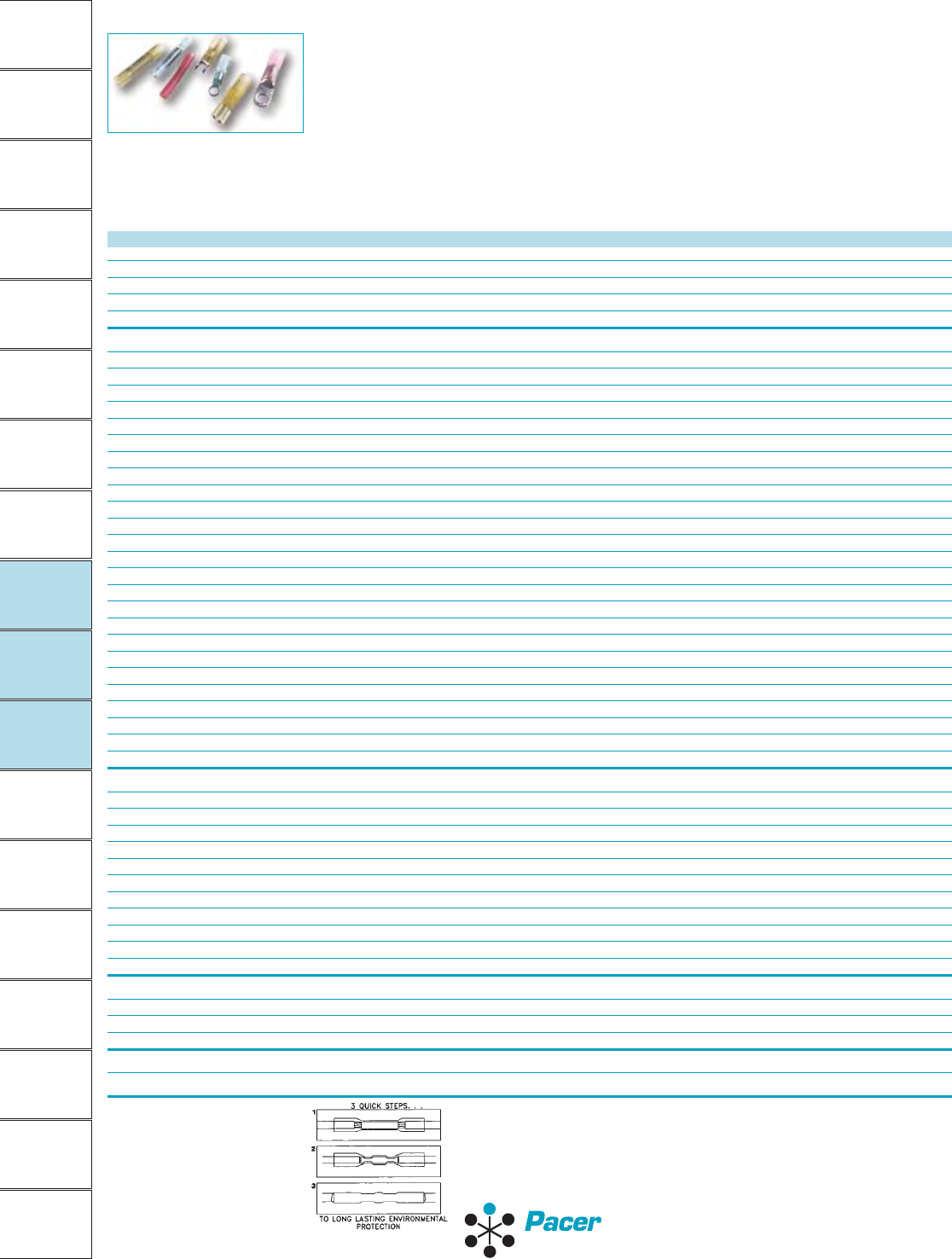

HEAT SHRINKABLE TERMINALS
Heat shrinkable terminals have quickly become the most requested connector among marine
professionals. The ease and speed by which these connectors create a fully environmentally sealed
connection is unmatched. Heat shrink terminals are constructed from high-grade, fully annealed,
tinned plated copper with a brazed barrel seam. The insulation is a tough, quick-to-shrink polyolefin.
FEATURES:
Protects terminations from water, condensation, salt spray and corrosion Provides strain relief Shrink Ratio: Approx. 3 to 1 at 135˚C
Added vibration protection in rugged environments Cost effective Operating Temperature: -55˚C to 125˚C
Available in gauge sizes 22 through 8 Dielectric Strength: 900V/mil Volume Resistivity: 1015 ohm-cm3
WIRE RANGE STUD SIZE PART NUMBER INSUL. COLOR STANDARD PACKAGE
BUTT SPLICES
#22-18 AWG N/A TBSE18 RED 25, 50, 100, 500, 1000
#16-14 A
WG N/A TBSE14 BLUE 25, 50, 100, 500, 1000
#12-10 AWG N/A TBSE10 YELLOW 25, 50, 100, 500
#8 AWG N/A TBSE8 PINK 10, 25, 50, 100, 250
RING TERMINALS
#22-18 AWG #6 TE18-6R RED 25, 50, 100, 500, 1000
#8 TE18-8R RED 25, 50, 100, 500, 1000
#10 TE18-10R RED 25, 50, 100, 500, 1000
1/4” TE18-14R RED 25, 50, 100, 500, 1000
5/16” TE18-56R RED 25, 50, 100, 500, 1000
3/8” TE18-38R RED 25, 50, 100, 500, 1000
#16-14 AWG #6 TE14-6R BLUE 25, 50, 100, 500, 1000
#8 TE14-8R BLUE 25, 50, 100, 500, 1000
#10 TE14-10R BLUE 25, 50, 100, 500, 1000
1/4” TE14-14R BLUE 25, 50, 100, 500, 1000
5/16” TE14-56R BLUE 25, 50, 100, 500, 1000
3/8” TE14-38R BLUE 25, 50, 100, 500, 1000
1/2” TE14-12R BLUE 25, 50, 100, 500, 1000
#12-10 AWG #6 TE10-6R YELLOW 25, 50, 100, 500
#8 TE10-8R YELLOW 25, 50, 100, 500
#10 TE10-10R YELLOW 25, 50, 100, 500
1/4” TE10-14R YELLOW 25, 50, 100, 500
5/16” TE10-56R YELLOW 25, 50, 100, 500
3/8” TE10-38R YELLOW 25, 50, 100, 500
1/2” TE10-12R YELLOW 25, 50, 100, 500
#8 AWG #10 TE8-10R PINK 10, 25, 50, 100, 250
1/4” TE8-14R PINK 10, 25, 50, 100, 250
5/16” TE8-56R PINK 10, 25, 50, 100, 250
3/8” TE8-38R PINK 10, 25, 50, 100, 250
1/2” TE8-12R PINK 10, 25, 50, 100, 250
LOCKING “SNAP” FORKS
#22-18 AWG #6 TE18-6SLF RED 25, 50, 100, 500, 1000
#8 TE18-8SLF RED 25, 50, 100, 500, 1000
#10 TE18-10SLF RED 25, 50, 100, 500, 1000
#16-14 AWG #6 TE14-6SLF BLUE 25, 50, 100, 500, 1000
#8 TE14-8SLF BLUE 25, 50, 100, 500, 1000
#10 TE14-10SLF BLUE 25, 50, 100, 500, 1000
1/4” TE14-14SLF BLUE 25, 50, 100, 500, 1000
#12-10 AWG #6 TE10-6SLF YELLOW 25, 50, 100, 500
#8 TE10-8SLF YELLOW 25, 50, 100, 500
#10 TE10-10SLF YELLOW 25, 50, 100, 500
1/4” TE10-14SLF YELLOW 25, 50, 100, 500
DISCONNECTS FEMALE MALE
#22-18 A
WG TDE18-250FI TDE18-250FIM RED 25, 50, 100, 500, 1000
#16-14 AWG TDE14-250FI TDE14-250FIM BLUE 25, 50, 100, 500, 1000
#12-10 AWG TDE10-250FI TDE10-250FIM YELLOW 25, 50, 100, 500
BULLETS
#1614 AWG TBRE14156 TBPE
14156 BLUE 25, 50, 100, 500, 1000
ORDERING INFORMATION:
Order by standard package.
INSTALLATION:
STEP 1: Strip wire 0.3" for butt splices or .25" for ring terminals. Insert into crimp barrel.
STEP 2: Crimp using the 3M TR-490 or any tool for pre-insulated terminals.
STEP 3: Heat splice or terminal from the crimped section out to the wire, with a heat
source until tubing recovers.
