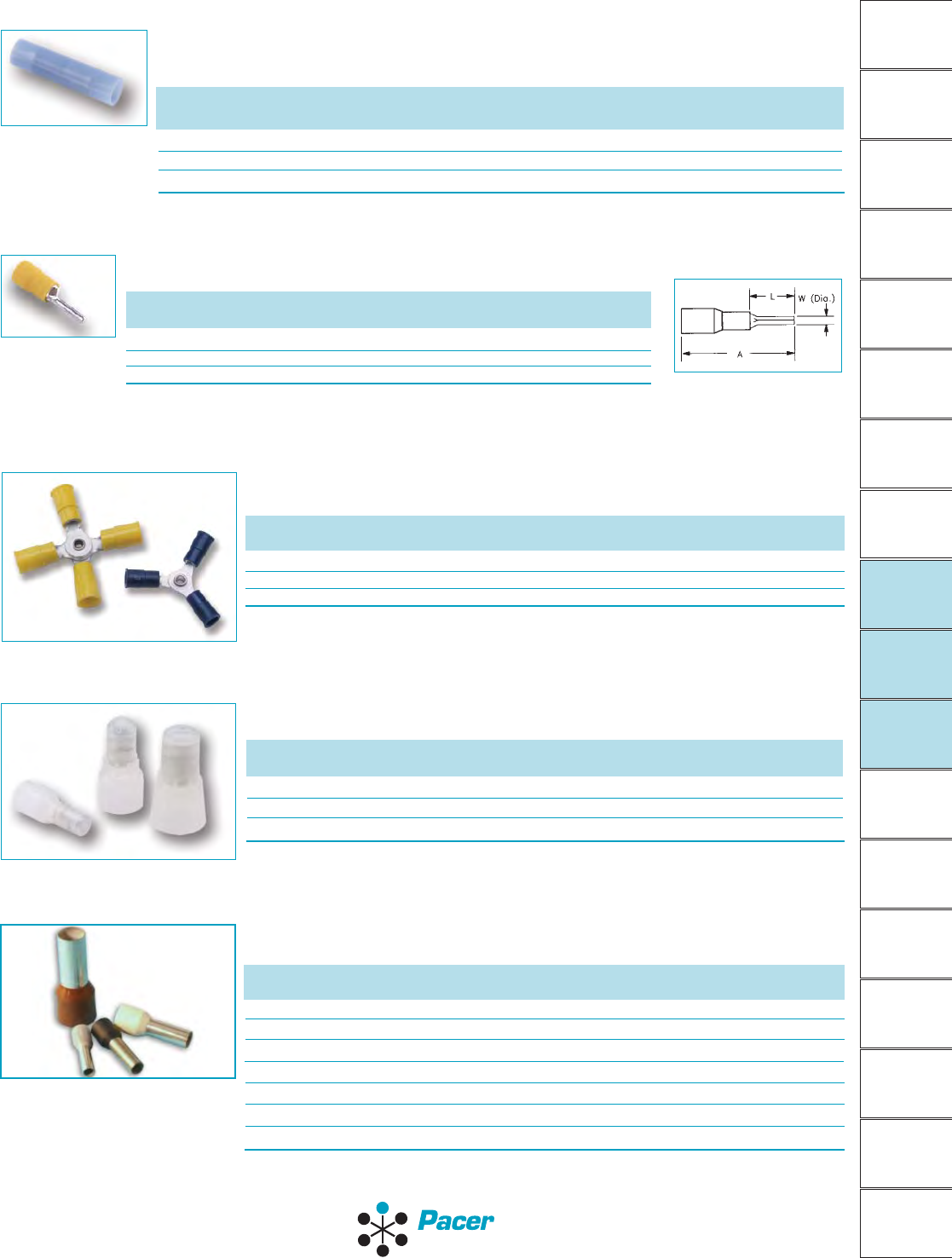

PIN TERMINALS

Pin terminals are primarily designed for compression type terminal blocks. Available in vinyl insulation only.

ORDERING INFORMATION: Order by standard package.

3WAY AND 4WAY CONNECTORS

3 or 4 ring connectors are tightly riveted together to allow the connection of multiple wires into

one circuit. The center hole diameter is .160”. Available in vinyl insulation only.

ORDERING INFORMATION: Order by standard package.

CRIMPABLE WIRE JOINTS

Wire joints can be used as a splice, wire butt, parallel or dead–end cap. Each size has a minimum

and maximum range of wires it will accept. Available in nylon insulation.

MIN/MAX* PART INSULATION STANDARD

RANGE NUMBER COLOR PACKAGE

218  216 AWG TJN218216 CLEAR 100, 500, 1000

418  212 AWG TJN418212 CLEAR 100, 500, 1000

314  412 AWG TJN314412 CLEAR 100, 500

WIRE NYLON VINYL NON INSULATION STANDARD

RANGE INSULATED INSULATED INSULATED COLOR PACKAGE

#2218 AWG TBSN18 TBSV18 TBS18 RED 50, 100, 1000

#1614 AWG TBSN14 TBSV14 TBS14 BLUE 50, 100, 1000

#1210 AWG TBSN10 TBSV10 TBS10 YELLOW 50, 100, 1000

ORDERING INFORMATION: Ordered by standard package.

BUTT SPLICES

For use whenever two wires need to be connected. Available in three styles: premium nylon insulated, vinyl

insulated and non-insulated. Non-insulated butt splices have a brazed seam to prevent separation during

crimping. All butt splices have a bell shaped wire entry with a serrated inner barrel for added pull-out strength.

WIRE FERRULES

Wire ferrules are typically used on wires being inserted into the IEC (European) style terminal

blocks. They prevent fraying and crushing of wire strands.

PART WIRE INSUL LENGTH

NUMBER AWG COLOR

TFRL14-10MM 14 BLUE 10mm (.39in)

TFRL12-10MM 12 GREY 10mm (.39in)

TFRL10-12MM 10 BLACK 12mm (.47in)

TFRL8-12MM 8 IVORY 12mm (.47in)

TFRL6-12MM 6 GREEN 12mm (.47in)

TFRL4-16MM 4 BROWN 16mm (.63in)

TFRL2-16MM 2 BEIGE 16mm (.63in)

WIRE VINYL INSULATION A L W STANDARD

RANGE INSULATED COLOR PACKAGE

22-18 AWG TV18-47P RED .84 .47 .08 50, 100, 500, 1000

16-14 AWG TV14-47P BLUE .84 .47 .08 50, 100, 500, 1000

12-10 AWG TV10-55P YELLOW 1.12 .55 .11 50, 100, 500

WIRE 3W VINYL 4W VINYL STANDARD

RANGE INSULATED INSULATED PACKAGE

22-18 AWG TV18-3W 50, 100, 500, 1000

16-14 A

WG TV14-3W 50, 100, 500, 1000

12-10 AWG TV10-3W TV10-4W 50, 100, 500
