FEATURES:

• Finely stranded tinned copper conductors

• Color coded PVC insulation

• Shield: 100% aluminum/polyester foil with a stranded tinned copper drain wire

• Gray PVC jacket

• Temperature Range - 20˚C to 80˚C (some cables may vary, call for specific

inf

ormation)

• Voltage Rating: 300V

• Resistant To: Acid, Alkalis, Abrasion, Ozone, Flame

• Applications: Computer interconnections

Remote control circuits

Data transmission

Industrial Equipment

COMPLIANCES:

NEC Article 800 Type CM (UL: 75(C)

UL St

yle 2464 (UL: 80˚C, 300V)

CSA PCC (CSA: 60˚C)

Passes UL 70,000 Btu Vertical Tray Flame

Test Passes CSA FT4 Flame Test

Nominal Capacitance: A–Between Conductors B–Between Conductor and Shield

*Compliance’s: NEC Article 725 Power-Limited Tray Cable (UL: 105˚C, 300V)

Passes UL 70,000 Btu Vertical Tray Flame Test.

PART # OF COND. **NOM. CC CAP. NOMINAL NOMINAL NOMINAL

NUMBER COND. STRAND PF/FT INSULATION JACKET O.D.

THICKNESS THICKNESS

A B

M22/2F 2 7/30 36.0 65.0 .010 .032 .169

M22/3F 3 7/30 36.0 65.0 .010 .032 .177

M22/4F 4 7/30 36.0 65.0 .010 .032 .190

M22/6F 6 7/30 34.0 61.0 .010 .032 .219

M22/8F 8 7/30 34.0 61.0 .010 .032 .235

M22/10F 10 7/30 34.0 61.0 .010 .032 .269

M22/15F 15 7/30 34.0 61.0 .010 .032 .304

M20/2F 2 7/28 39.0 70.0 .015 .032 .207

M20/3F 3 7/28 39.0 70.0 .015 .032 .217

M20/4F 4 7/28 39.0 70.0 .015 .032 .236

M20/6F 6 7/28 37.0 66.0 .015 .032 .276

M20/8F 8 7/28 37.0 66.0 .015 .032 .297

M20/10F 10 7/28 37.0 66.0 .015 .032 .345

M20/15F 15 7/28 37.0 66.0 .015 .032 .393

M20/20F 20 7/28 37.0 66.0 .015 .032 .435

M18/2F* 2 16/30 50.0 90.0 .013 .037 .227

M18/3F* 3 16/30 47.0 84.5 .013 .037 .238

M18/4F 4 16/30 N/A N/A .010 .035 .245

M18/6F 6 16/30 N/A N/A .017 .032 .310

M18/8F 8 16/30 N/A N/A .017 .032 .330

M18/10F 10 16/30 N/A N/A .017 .032 .390

M18/15F 15 16/30 N/A N/A .017 .032 .450

M16/2F* 2 19/.0117 58.5 105.0 .013 .037 .243

M16/3F* 3 19/.0117 51.5 93.0 .013 .037 .255

M16/4F 4 19/.0117 N/A N/A .017 .032 .290

M16/6F 6 19/.0117 N/A N/A .017 .032 .350

M16/8F 8 19/.0117 N/A N/A .017 .032 .380

M14/2F* 2 19/.0147 66.0 118.5 .013 .042 .290

M14/3F* 3 19/.0147 57.0 103.0 .013 .042 .300

M12/2F* 2 19/.0185 74.0 135.5 .013 .042 .320

ORDERING INFORMATION:

Cut as required.

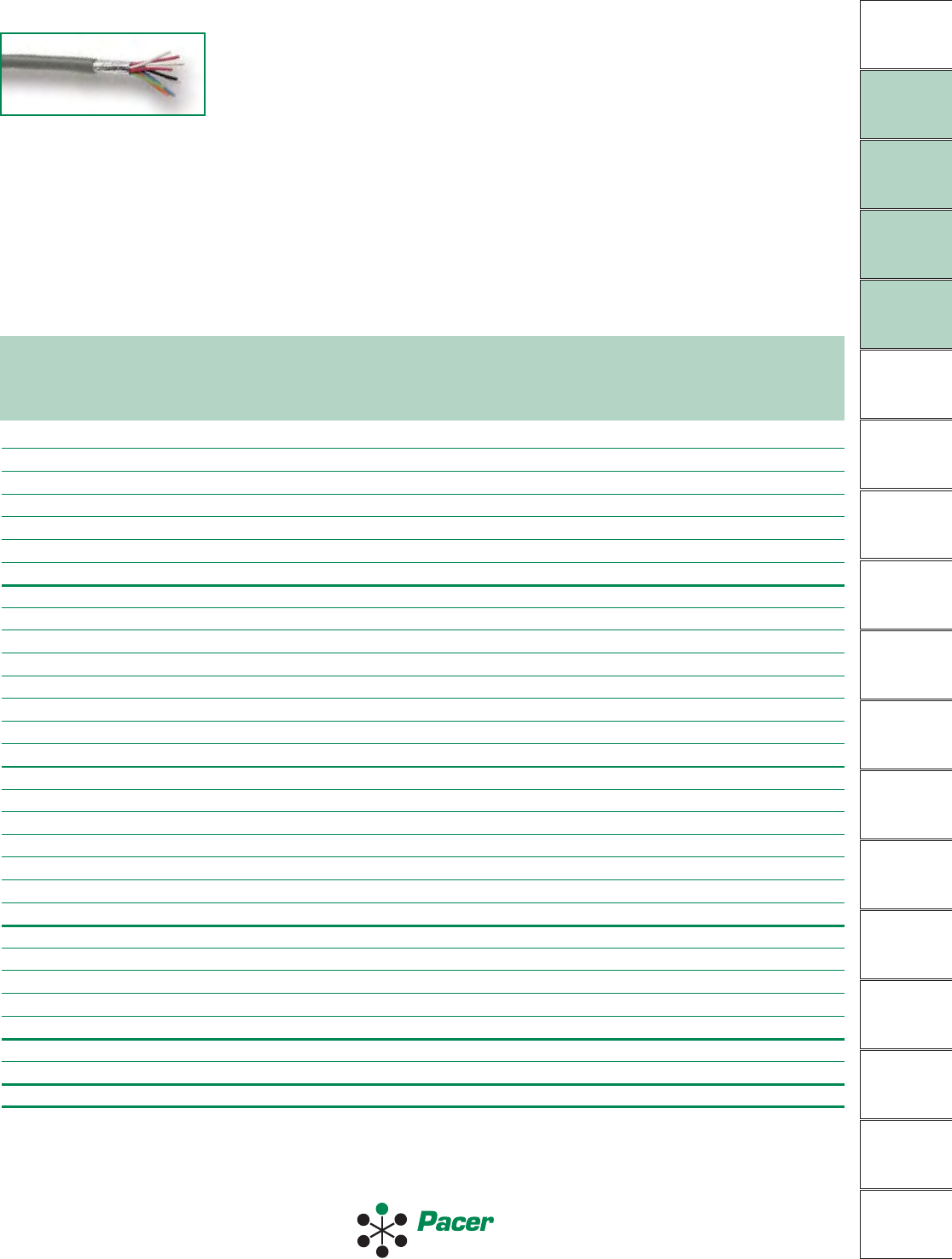

MULTICONDUCTOR SHIELDED CABLES

Multi-conductor shielded cables are primarily used to provide R.F. interference protection. Their

applications range from internal and external interconnection of electronic equipment to data

transmission and signaling systems. Unless otherwise specified, all of our shielded cables have

100% aluminum/polyester foil tape with a 25% overlap and a stranded tinned copper drain wire.
