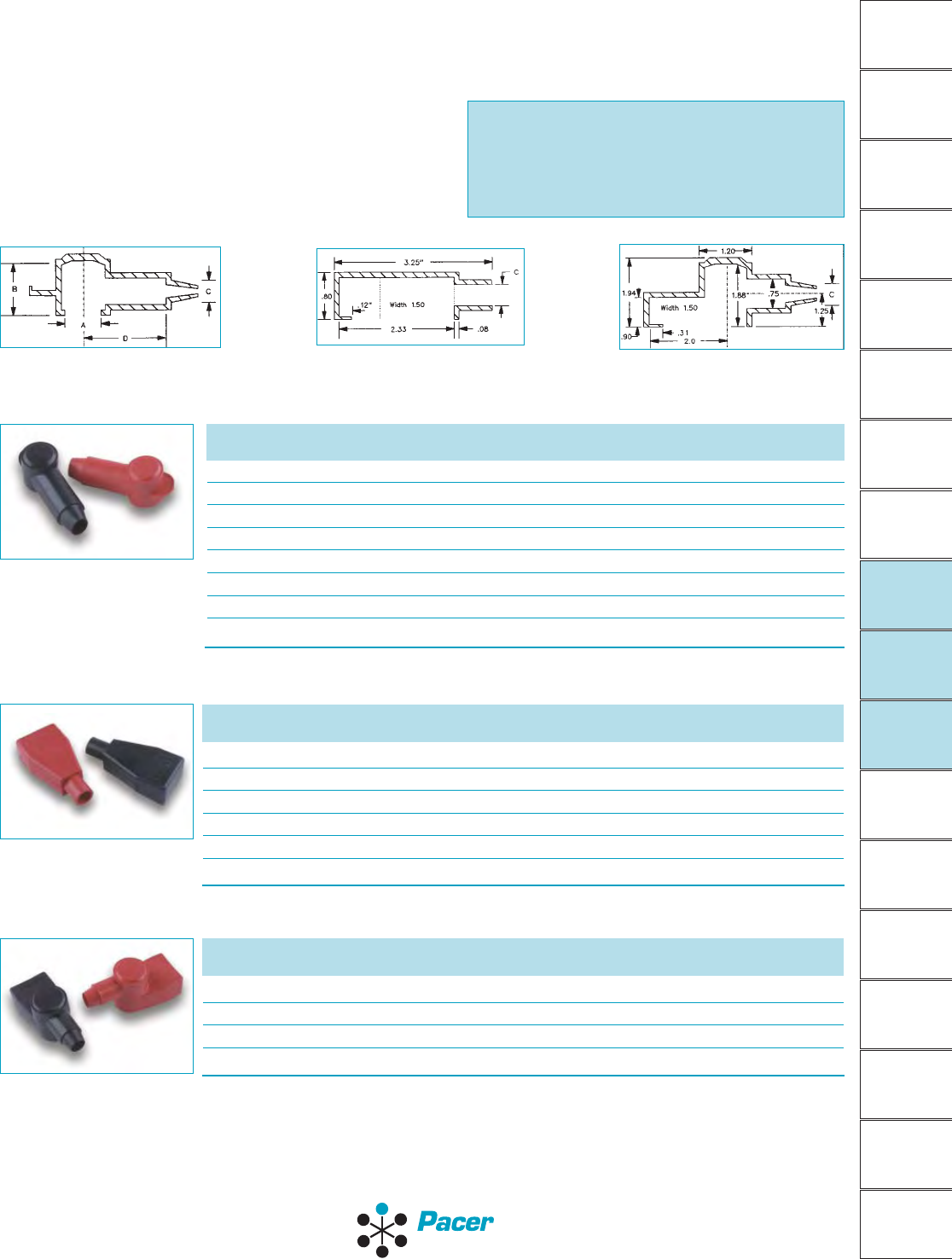

BATTERY INSULATOR BOOTS

Battery terminal insulators increase product safety by preventing electrical shorts and shock, avoiding injury and potential liability.

Additionally, the use of terminal insulators assures customers that your product was designed with the highest standards of quality.

Protective boots and caps extend battery life by protecting against corrosion. Constructed from durable, heavy-duty PVC. Available

in straight, marine, and alternator type.

FEATURES:

• Recommended per ABYC E-10.6(1)

• Polyvinyl Chloride 105˚C

• Meets Coast Guard 33 CFR Part 183 Subpart 1

• Meets S.A.E. J378 and J1128 (Low voltage caps)

• Meets UL 94 V2 Rated 105˚C

Alternator Type

Straight Type

Marine Type

WIRE PART TERMINAL POST CABLE ENTRY COLOR STANDARD

RANGE NUMBER O.D. “A” HEIGHT “B” “C” MIN/MAX PACKAGE

10-6 AWG TBCA6-R .48 .75 .30/.50 RED 10, 25, 50

TBCA6-B .48 .75 .30/.50 BLACK 10, 25, 50

8-2 AWG TBCA2-R .87 1.05 .30/.50 RED 5, 10, 25

TBCA2-B .87 1.05 .30/.50 BLACK 5, 10, 25

2-4/0 AWG TBCA20-R .87 1.05 .50/.70 RED 5, 10, 25

TBCA20-B .87 1.05 .50/.70 BLACK 5, 10, 25

4/0 AWG TBCA40-R 1.37 1.60 .70/.90 RED 5, 10, 25

TBCA40-B 1.37 1.60 .70/.90 BLACK 5, 10, 25

ALTERNATOR TYPE

WIRE PART CABLE COLOR STANDARD

RANGE NUMBER ENTRY PACKAGE

6-2 AWG TBCS2-R .500 RED 5, 10, 25

TBCS2-B .500 BLACK 5, 10, 25

2-2/0 AWG TBCS20-R .625 RED 5, 10, 25

TBCS20-B .625 BLACK 5, 10, 25

4/0 AWG TBCS40-R .700 RED 5, 10, 25

TBCS40-B .700 BLACK 5, 10, 25

STRAIGHT TYPE

WIRE PART CABLE ENTRY COLOR STANDARD

RANGE NUMBER “C” MIN/MAX PACKAGE

6-2 AWG TBCM2-R .30/.50 RED 5, 10, 25

TBCM2-B .30/.50 BLACK 5, 10, 25

2-4/0 AWG TBCM20-R .50/.70 RED 5, 10, 25

TBCM20-B .50/.70 BLACK 5, 10, 25

MARINE TYPE

ORDERING INFORMATION: Order by standard package.

ABYC recommends that “Except for circuits provided with

over current protection in accordance with ABYC E-9.11.

continuously energized parts, such as positive battery

terminals and both ends of all wires connected thereto,

shall be protected to prevent accidental short circuits.”
