2.3.36 Contact Assy/ Left Plate Assy
(1) Remove the printer unit chassis (see section 2.3.25).
(2) Remove the four screws 1 to detach the left plate Assy 2.
(3) Remove the screw 3 to detach the contact Assy 4.

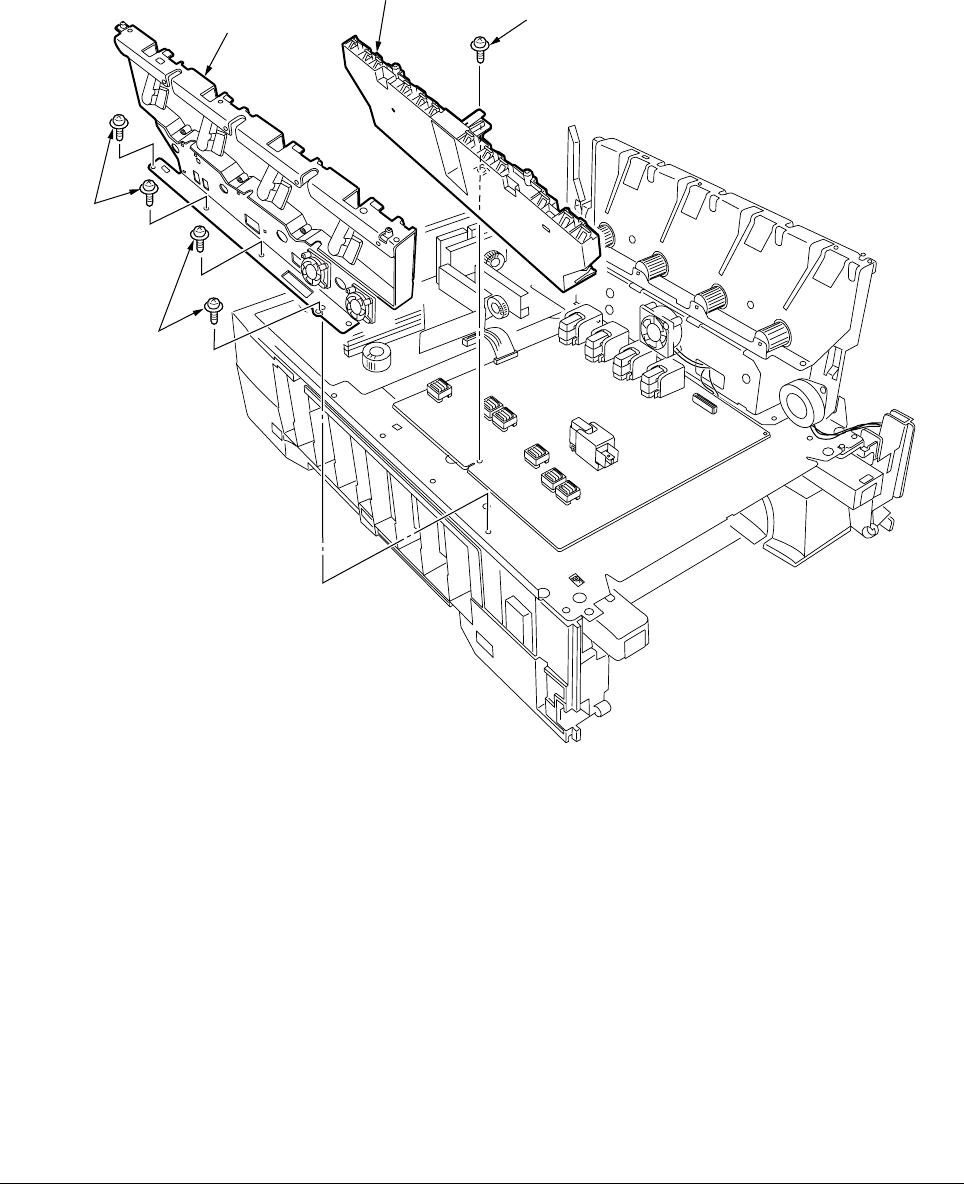

Figure 2-3-36 Contact Assy/ Left Plate Assy
