3.4.2.2 Media Setting

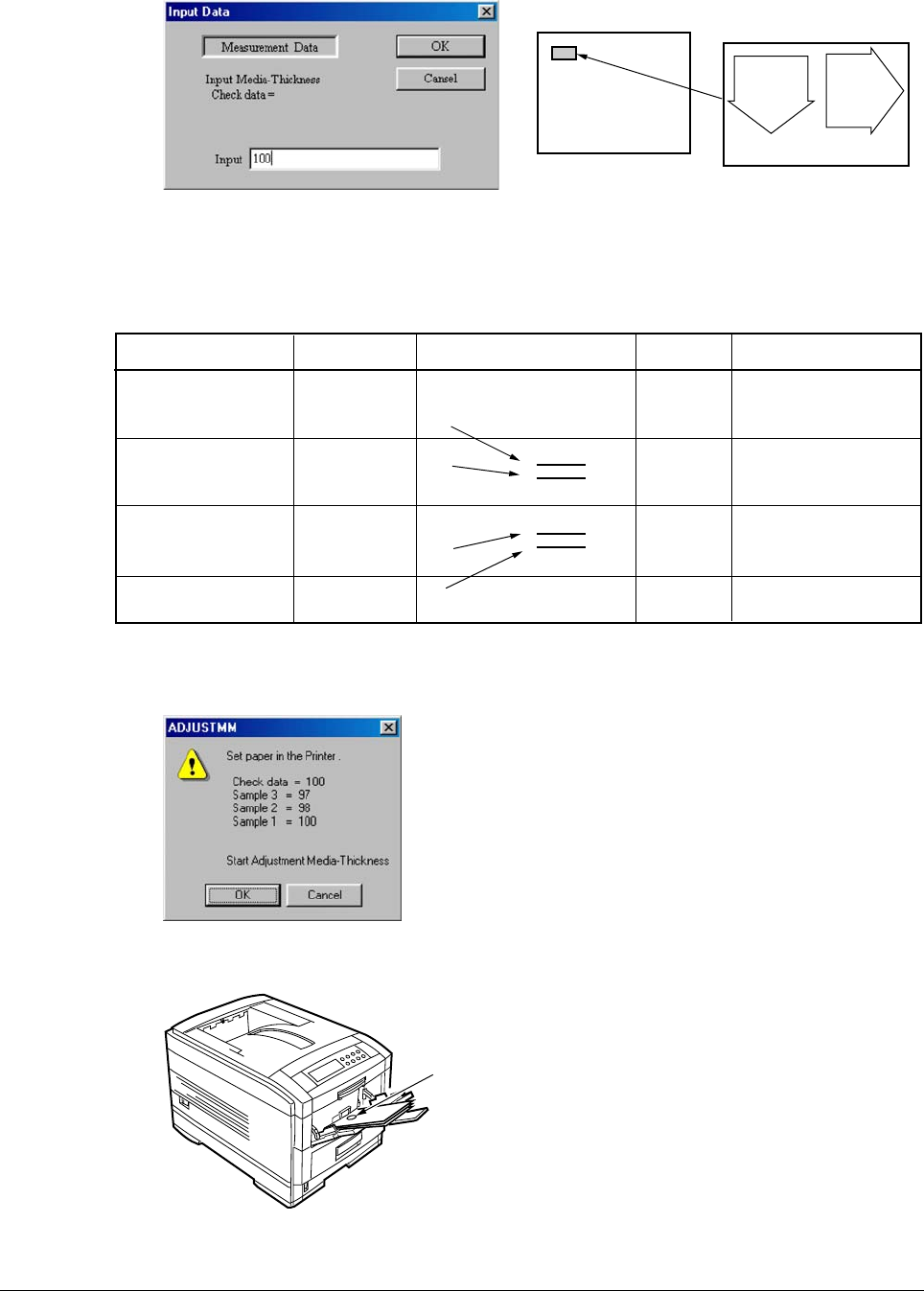

(1) The media thickness input screen is displayed.
Prepare four sensitivity adjustment transparency sheets (42404301) and enter the thicknesses
with which the transparency sheets are labeled.
Four sensitivity Adjustment Transparency Sheets (42404301)
Transparency Sheet Appearance
Media Thickness Indication Label
DO NOT REUSE
Long Edge
xxx ∝m
Short Edge
xxx ∝m
Note:
• Make thickness entries in ∝m (simply type in the value that is indicated on each
transparency sheet). Enter the value of the short edge.
• Load the sheets in the multipurpose tray, in the order of their thickness entry (the media
of the first entered thickness is to be lowermost in the multipurpose tray).
Screen Display
sample 1=
sample 2=
sample 3=
Check data=
Thickness Entry Order
4
3
2
1
Feed Order
1
2
3
4
Tray Loading Order
4 MP try top
3
2
1 MP try bottom
Remarks
Sensitivity adjustment
1st sheet
Sensitivity adjustment
2nd sheet
Sensitivity adjustment
3rd sheet
Check sheet
(2) After the completion of the thickness entry of the fourth sheet, the ADJUSTMM screen is
shown.
Paper Orientation: Portrait
Measurement point
* Load four sheets of media so as that their measurement points are located at the front feeder
- plate hopper.
