2.3.29 Fuser Exit Roller

(1) Unscrew the two screws 1 to remove the duplex gate solenoid Assy 2.

(2) Unscrew the screw 3 to remove the fuser exit roller contact 4.

(3) Remove the fuser drive gear -A 5 and fuser drive gear -A 6.

(4) Unscrew the screw 7 to remove the fuser drive gear -C 8.

(5) Unlatch and detach the fuser drive gear -B 9 and fuser exit roller bush (R) 0.

(6) Unlatch and detach the fuser exit roller bush (L) A and fuser exit roller B.

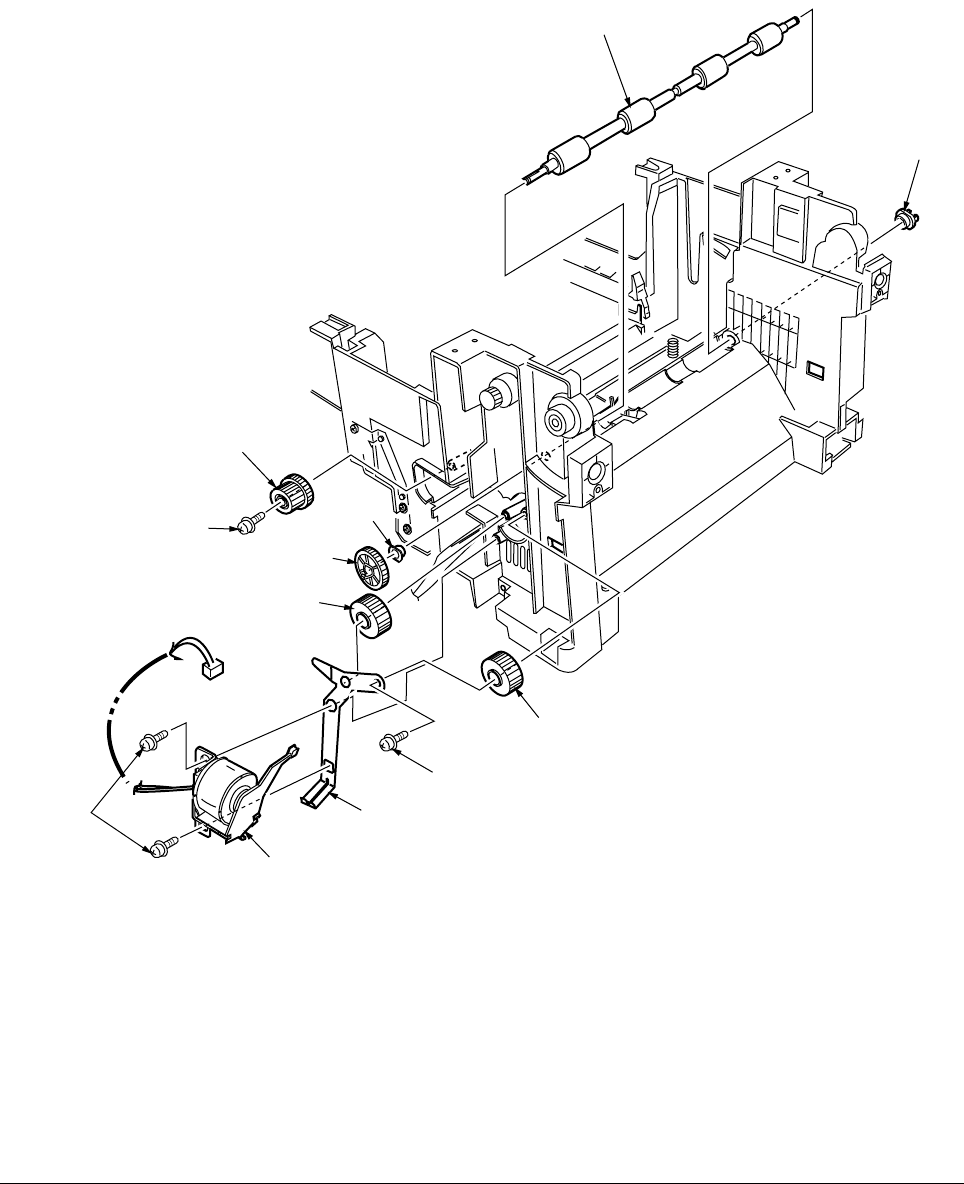

Figure 2-3-29 Fuser Exit Roller
