2.3.28 Entrance MT Sensor Actuator / Entrance Belt Sensor Actuator / Entrance Waste Chassis Sensor
Actuator
(1) Remove the entrance sensor PWB (R71) (see section 2.3.27).
(2) Unlatch and detach the entrance MT sensor actuator 1.
(3) Unlatch and detach the entrance belt actuator 2.
(4) Release the latch and remove the Entrance Waste Chassis Sensor Actuator 3.

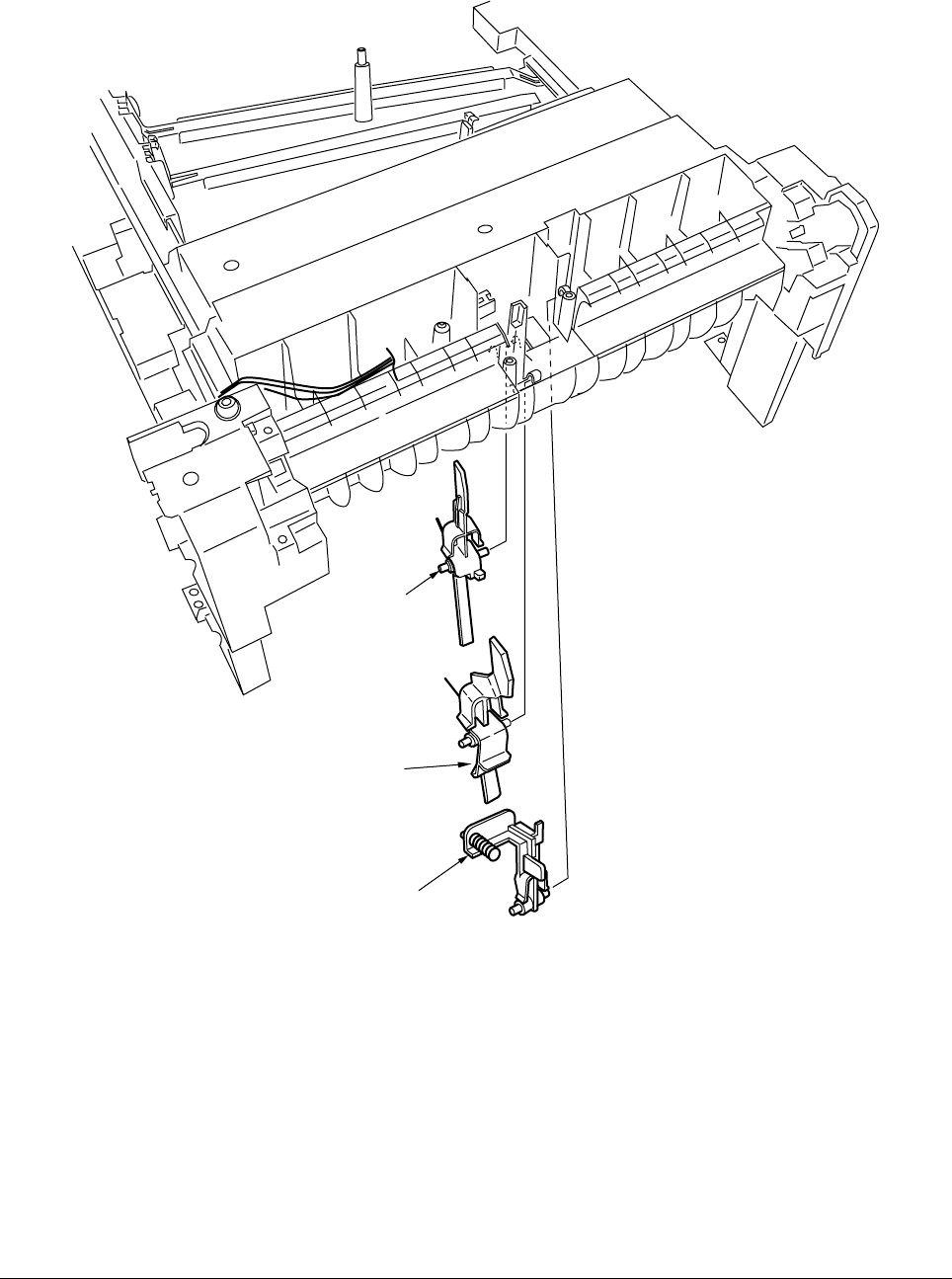

Figure 2-3-28 Entrance MT Sensor Actuator / Entrance Belt Sensor Actuator /
Entrance Waste Chassis Sensor Actuator
