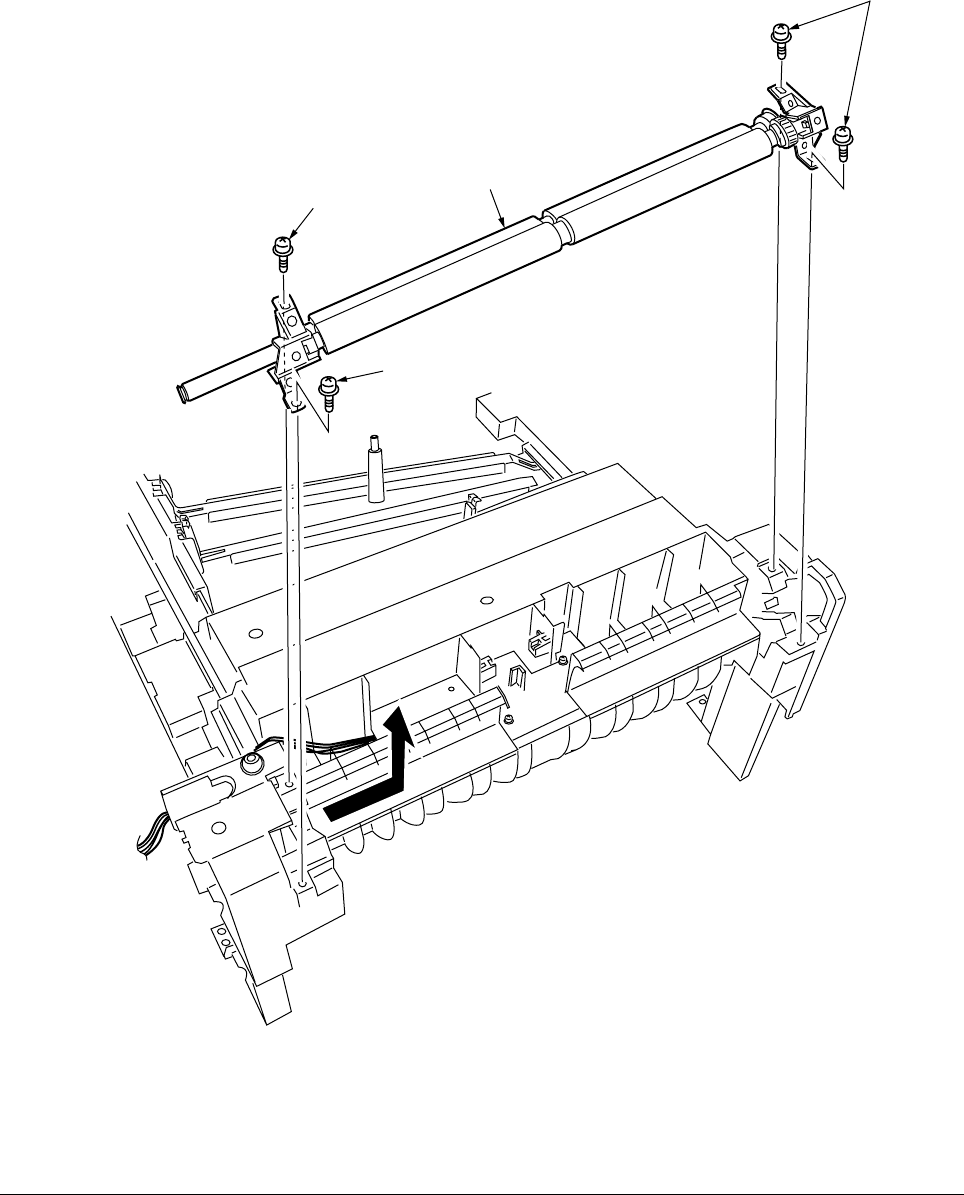

Figure 2-3-18 Registration Roller Assy (B)

2.3.18 Registration Roller Assy (B)

(1) Remove the cassette Assy.

(2) Open the front cover.

(3) Remove the right side cover (see section 2.3.13).

(4) Remove the left plate Assy (see section 2.3.23).

(5) Remove the registration clutch (see section 2.3.19).

(7) Unscrew the four screws 1, and pull out the registration Assy (B) 1 in the arrow direction.
