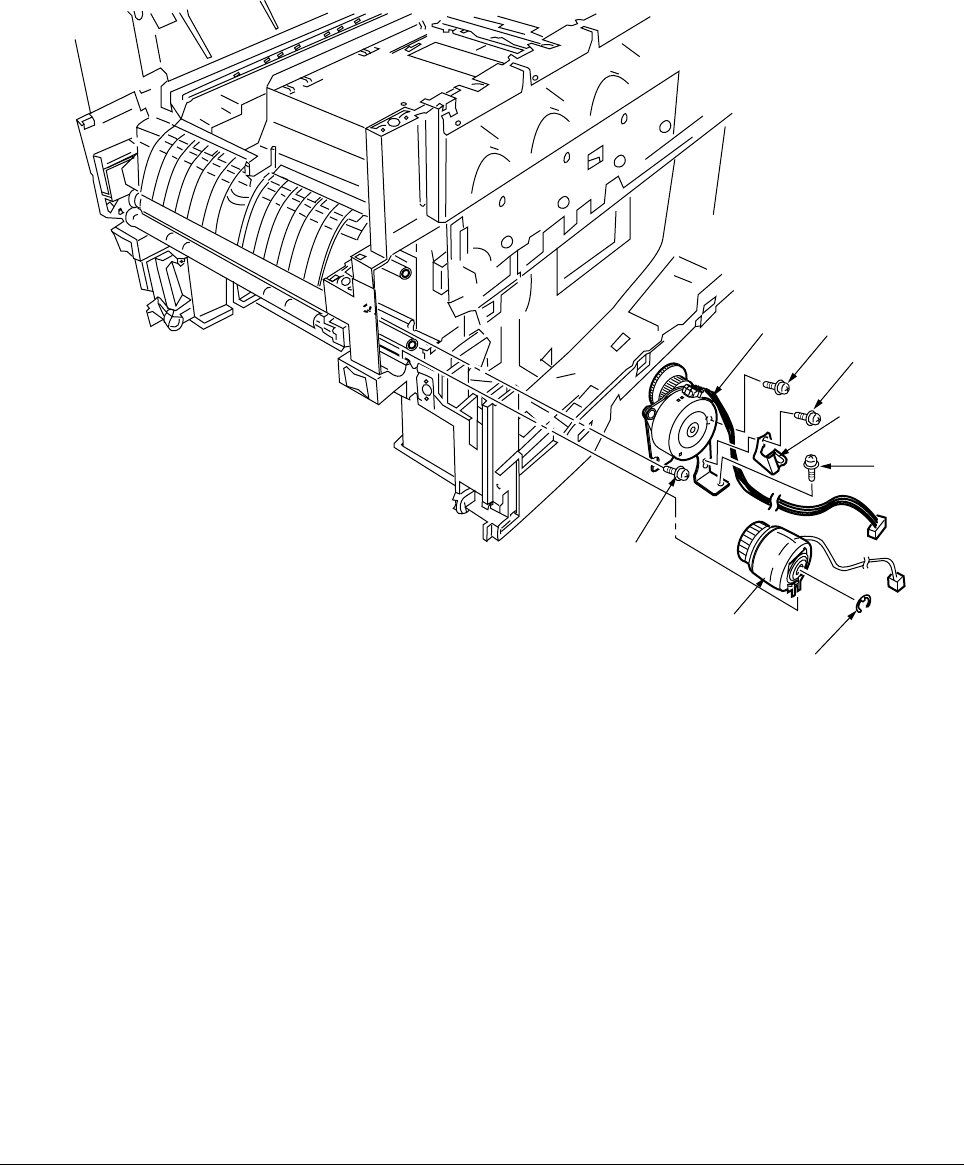

Figure 2-3-19 Registration Clutch and Registration Motor Assy

2.3.19 Registration Clutch and Registration Motor Assy

(1) Remove the left side cover (see section 2.3.12).

(2) Remove the left plate Assy (see section 2.3.23).

(3) Remove the connector and the E ring 1, then remove the two screws 2, the earth 3 and the

registration clutch 4.

(4) Remove the connector to remove the two screws 5 and the registration motor Assy 6.
