2.3.14 Multipurpose Tray Assy/ Multipurpose Tray Cover Assy/ Links/ Multipurpose Tray Top Cover/
Multipurpose Tray Drive Gear
(1) Remove the left side cover (see section 2.3.12).
(2) Remove the right side cover (see section 2.3.13).
(3) Detach the Cover Seal Sensor and the Thickness Sensor Connector (see section 2.3.16).
(4) Remove the three screws 1 to detach the multipurpose tray top cover 2.
(5) Remove the three screws 3 (two of them are black) and the connector to detach the multipurpose
tray 4.
(6) Disengage A and B at both sides of the assembly to detach the multipurpose tray cover Assy
5 (at the same time, the links 6 become detached).
(7) Unhook and detach the multipurpose tray drive gear 7.
1
1
2
3
3
3
5
6
4
6
7
7
A
A
B
B

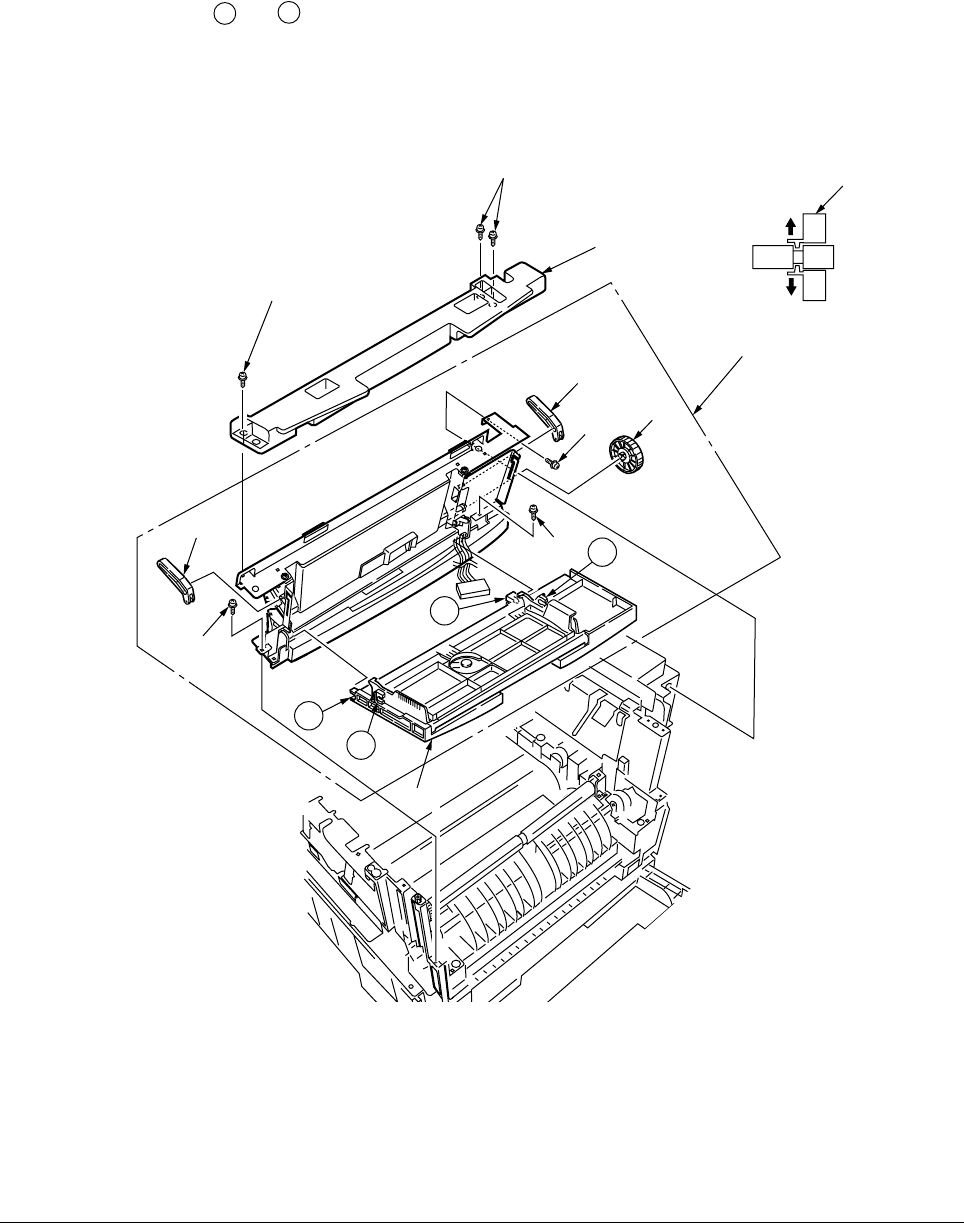

Figure 2-3-14 Multipurpose Tray Assy/ Multipurpose Tray Cover Assy/ Links/ Multipurpose Tray Top
Cover/ Multipurpose Tray Drive Gear
