Sharp AR-C240P Specifications Page 30
- Page / 196
- Table of contents
- TROUBLESHOOTING
- BOOKMARKS
Rated. / 5. Based on customer reviews
30 /
9
B
3
3
7
6
A
5
1
0
0
4
2
8
2.3.4 Control Panel Assy/ Control Panel Bezel/ LED Control PWB/ Toner Sensors/ Stacker Full Sensor/
Control Panel/ Control Panel Tape Harness/ Eject Rollers
(1) Remove the control panel Assy 1.
(2) Detach the control panel tape harness 2.
(3) Remove the top cover unit (see section 2.3.3).
(4) Unscrew the six screws 3 to remove the earth plate 4.
(5) Remove the two screws 5, unhook all the connectors 6 and demount the LED control PWB 7.
(6) Disengage the four claws to demount the toner sensor 8.
(7) Demount the stacker full sensor 9.
(8) Demount the exit rollers A.
(9) Detach the LED harnesses, K, Y, M and C B.
(10) Detach the top cover inner frame Assy C.

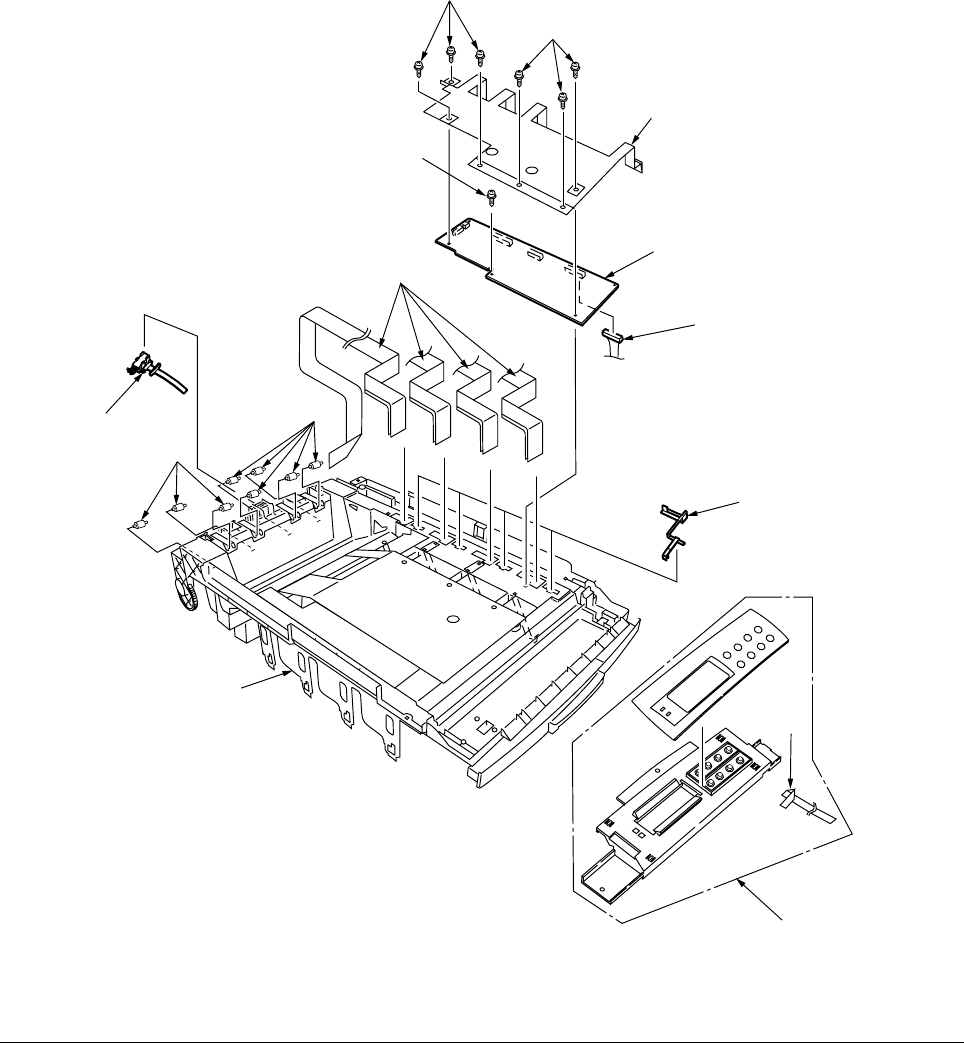

Figure 2-3-4 Control Panel Assy/ Control Panel Bezel/ LED Control PWB/ Toner Sensors/ Stacker
Full Sensor/ Control Panel/ Control Panel Tape Harness/ Eject Rollers
