162 /
3
3
3
3
2
3
4
0
0
9
7
1
1
E
C
B
A
E
F
8
D
D
3
1
1
1
1
5

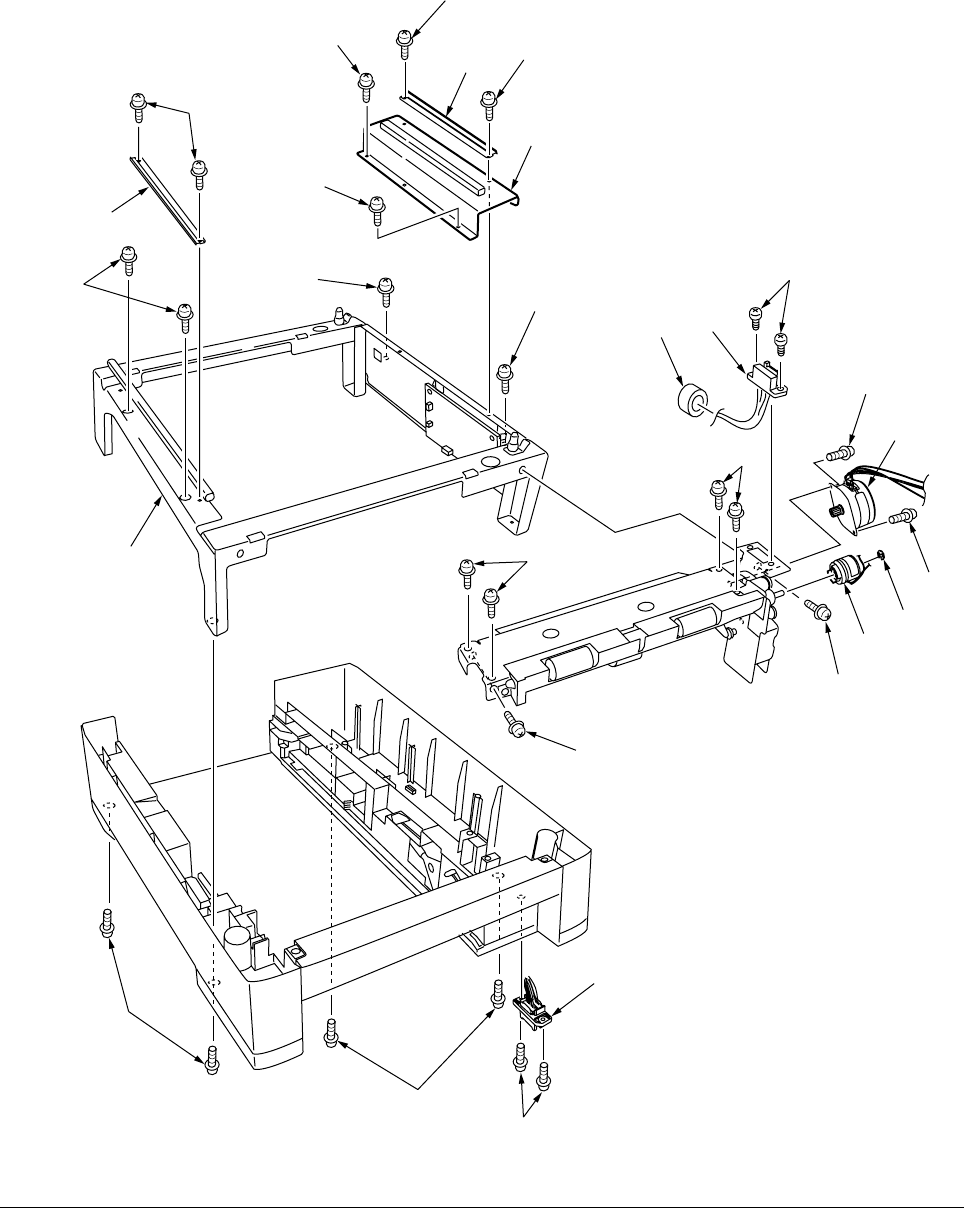

1.3 Feeder Drive Assy
(1) Remove the four screws 1, six screws 2 and the eight screws 3.
(2) Remove the cover sides 4 and 5, the plate cover PCB 6 and the frame hopping Assy 7.
(3) Remove the E ring 8, the clutch 9 and the two screws 0.
(4) Unscrew the two screws A to remove the core B and the connector C.
(5) Unscrew the two screws D, then detach the motor E.
(6) Unscrew the tow screws F to remove the connector G.
