5-53
SCANNER/INTERNET FAX
Contents
Specifying the original scan size (by numerical values)
When scanning a non-standard size original such as a card, follow these steps to specify the original size.
1

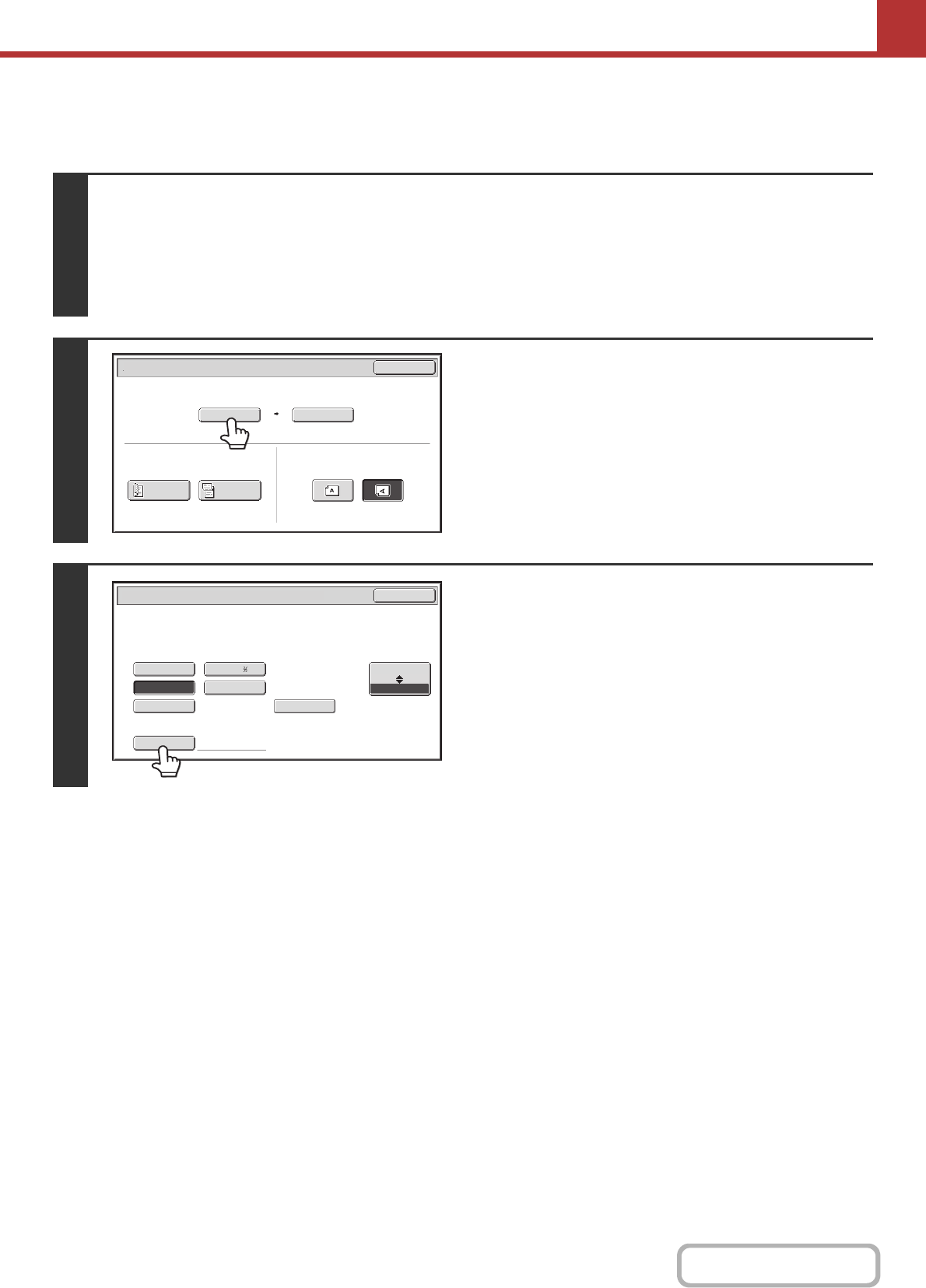

Select the mode and display the image settings screen.
(1) Touch the tab of the mode that you wish to use.
(2) Touch the [Original] key.
The original size set in the system settings appears to the right of the [Original] key.
☞ IMAGE SETTINGS (page 5-49)
2
Touch the [Scan Size] key.
3
Touch the [Size Input] key.
Scan/Original
OK
Auto
Scan Size
2-Sided
Tablet
2-Sided
Booklet
Send Size
100%
Image Orientation
8½x11
Scan/Original
OK
Inch
AB
5½x8½
8½x148½x11
8½x13 Long Size
Size Input
8½x13
