8-3
TROUBLESHOOTING
Contents

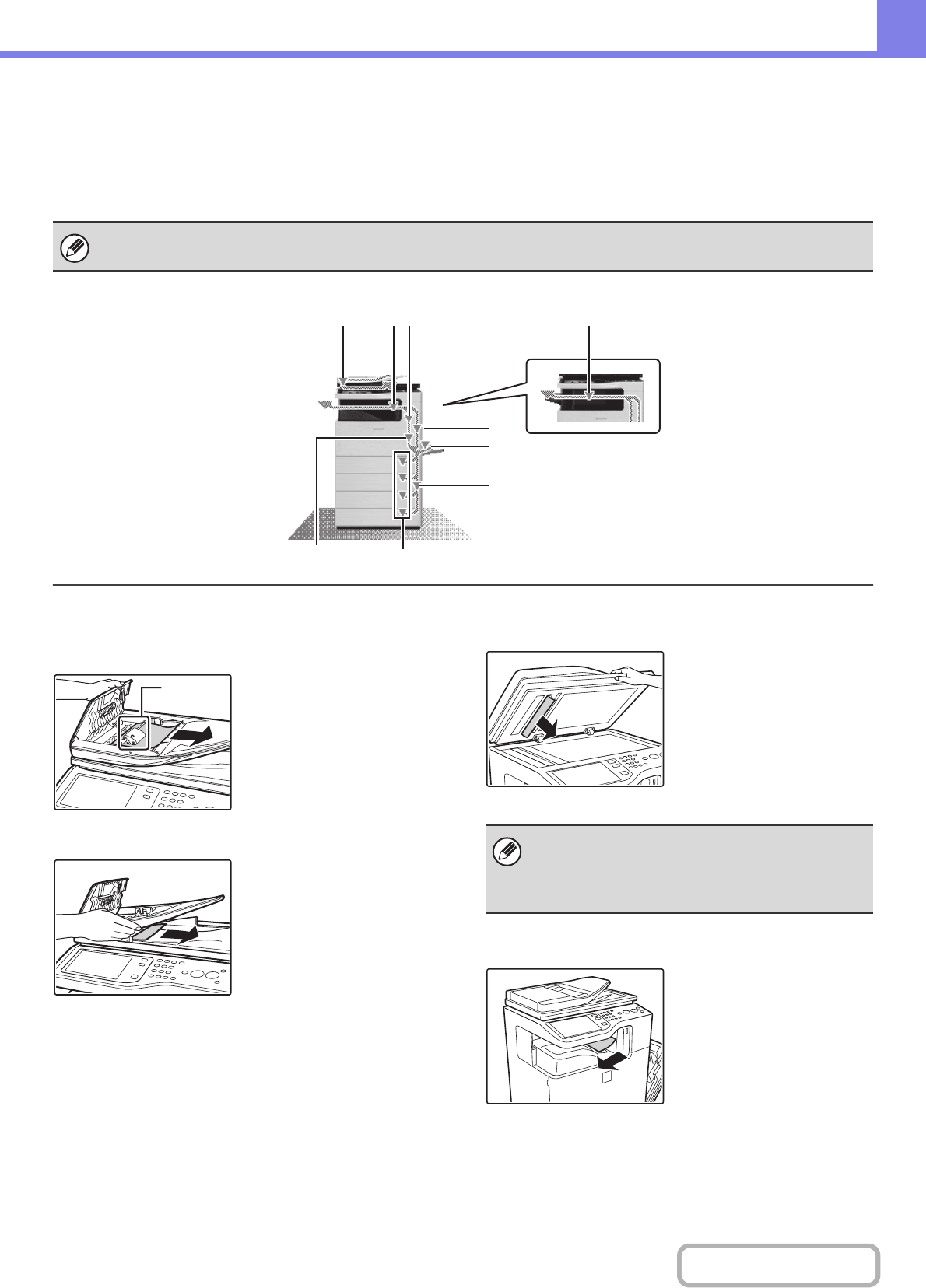

HOW TO REMOVE MISFEEDS
If you require more information when reading the instructions in the touch panel, see the paper misfeed illustrations
below. Refer to the illustration below and then go to the appropriate illustration (1 to 10) for your situation.
☞ (1)-(2): page 8-3, (3)-(8): page 8-4, (9)-(10): page 8-5
(1) Original misfeed
Open the document feeder
cover and remove the paper
feed roller.
For the procedure for
removing the feed roller from
the automatic document
feeder, see the Maintenance
& Safety Guide.
Pull out the document feeder
tray and remove the misfed
paper.
Open the automatic
document feeder and
remove the original.
(2) Paper misfeed in the output area
Remove the misfed paper.
When removing a misfeed or closing a cover, tray, or the finisher, take care that your fingers do not become pinched.
(1) (2) (10)
(8) (9)
(3)
(4)
(5)
(6), (7)
Paper
feed roller
After removing the misfeed, open and close the
automatic document feeder (or the document feeding
area cover or document feeder tray) to clear the
misfeed display from the touch panel.
