Using the Machine as a Shared Printer on a Network

5. Select the AM-400 from the list of shared printers and click Next.

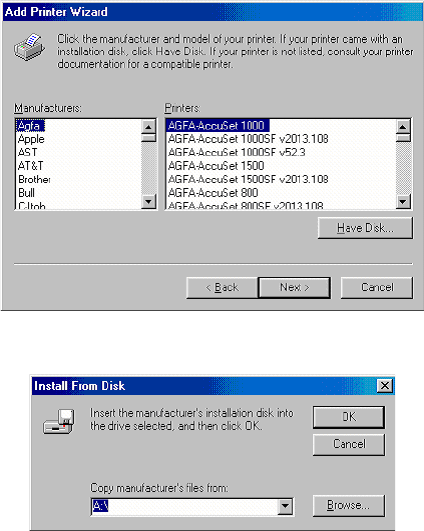

6. If the server is running Windows

XP or 2000, the dialog box below will

appear. Click Have Disk and click Next.

If the server is running Windows

Me, go to Step 10.

7. Click Browse.

8. Navigate to your CD-ROM drive and open the Driver folder, the Printer folder,

and then the EnglishA folder. Select WinMe9x and click OK.
