Clearing Paper Jams
151
10. Trouble-
shooting

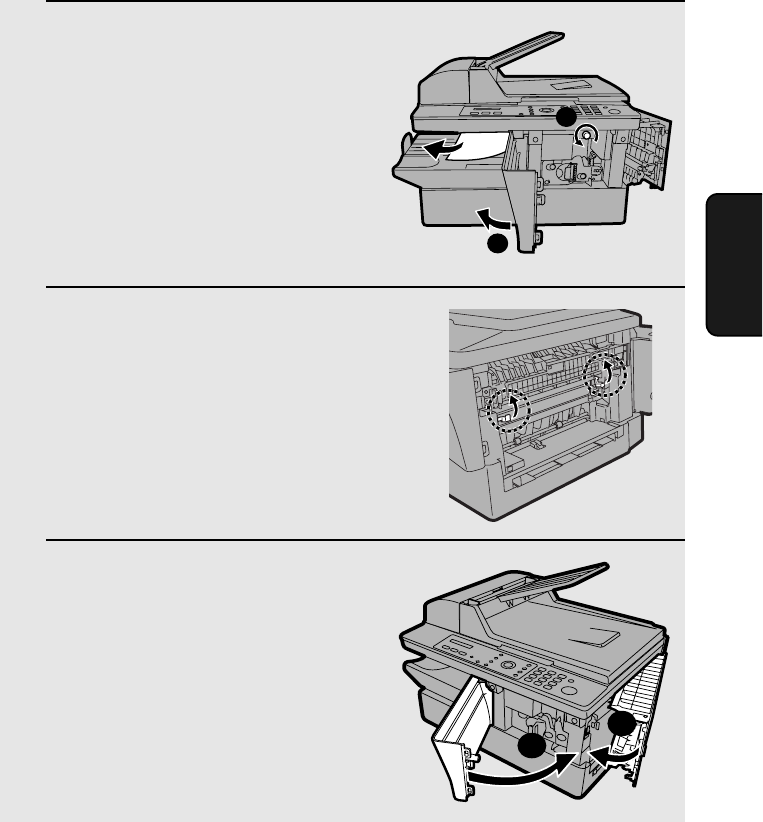

4 If the jammed page cannot be pulled
out directly, open the front cover
➊
and rotate the white knob ➋ in the
direction shown to feed the jammed
page out into the output tray.
5 After the jammed page has been
removed, push the two heater roller
release levers back up.
6 Close the front cover ➊ (if you opened
it) and then the side cover
➋.
2
1
2
1
