Scanning From the Operation Panel
127
7. Scanning

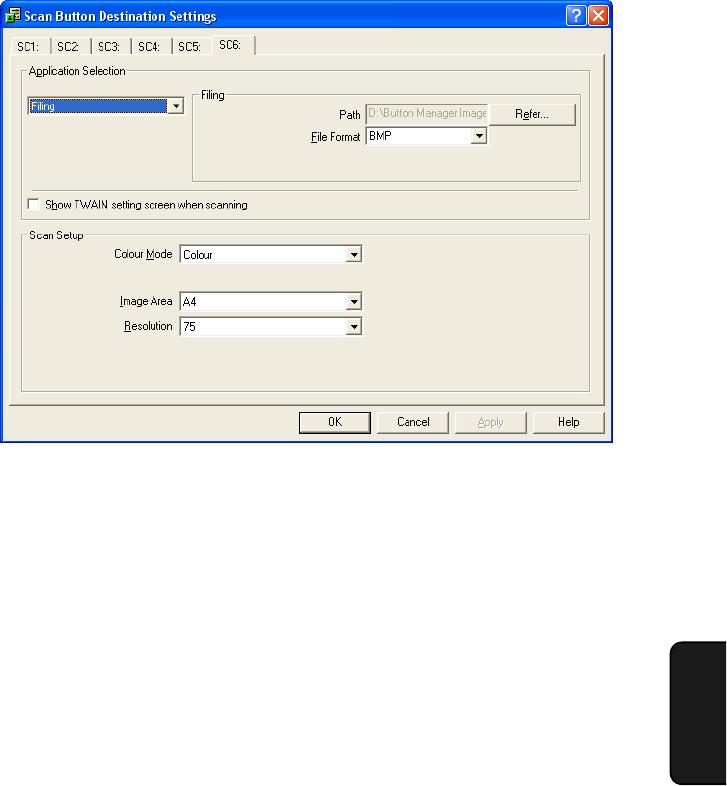

• When Filing is selected as the application
To select the folder where the image file will be saved, click Refer in the
Filing field. Select the desired folder in the Browse for Folder window and
click OK. The selected folder will appear in Path. Select the File Format.
3. When you have finished configuring the settings, click the OK button to save
your settings and close the Scan Button Destination Settings window.
• To save your settings without closing the window, click Apply.
