Using the Machine as a Shared Printer on a Network
39
1. Installation

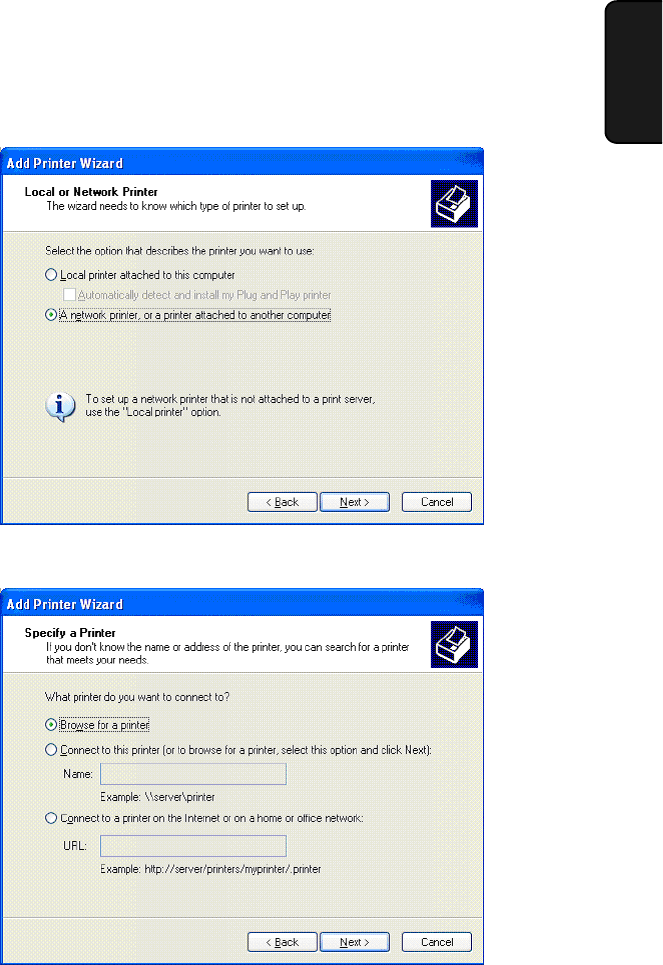

3. The following window will appear. Select A network printer, or a printer
attached to another computer and click Next.
4. Select Browse for a printer and click Next.
5. Select the AM-400 from the list of shared printers and click Next.
6. Select Yes if you would like to use the AM-400 as the default printer and click
Next.
