IBX-530B-270 Embedded System

Page 70



HiSpeed DEFAULT

The controller is capable of operating at high speed

480 Mb/s

5.4 PCI/PnP

Use the PCI/PnP menu (5BIOS Menu 13) to configure advanced PCI and PnP settings.

WARNING:

Setting wrong values for the BIOS selections in the PCIPnP BIOS

menu may cause the system to malfunction.

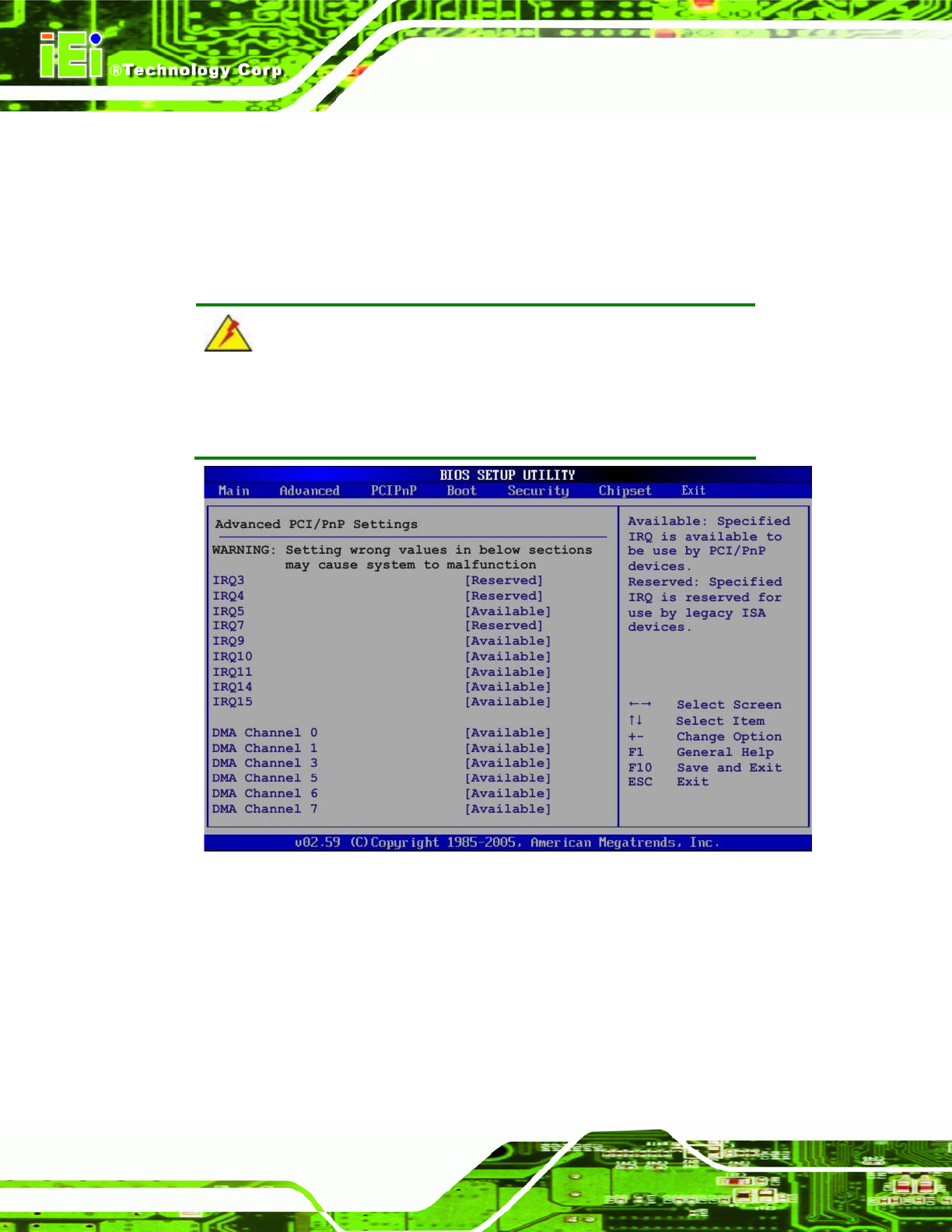

BIOS Menu 13: PCI/PnP Configuration

 IRQ# [Available]

Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral

device.



Available DEFAULT

The specified IRQ is available to be used by

PCI/PnP devices
