IBX-530B-270 Embedded System

Page 32

128MB CompactFlash® card with Windows

CE 6.0 pre-installed

(P/N: IBXCF-530-945GSE-CE060) (optional)

1GB CompactFlash® card with Windows

XPE pre-installed

(P/N: IBXCF-530-945GSE-XPE) (optional)

Table 4-1: Package List Contents

CAUTION:

This symbol warns the user that the part has this symbol is hot.

Therefore, it is dangerous to make any kind of contact with this part.

4.2.3 Bottom Cover Removal

Before the jumper settings can be configured, the bottom cover must be removed. To

remove the bottom cover, please follow the steps below:

Step 1: Turn the IBX-530B-N270 over.

Step 2: Remove the bottom cover retention screws. The bottom cover is secured to the

front pane and the rear panel with six retention screws, three in the front panel

(

Figure 4-1) and three in the rear panel (Figure 4-2). All six screws must be

removed.

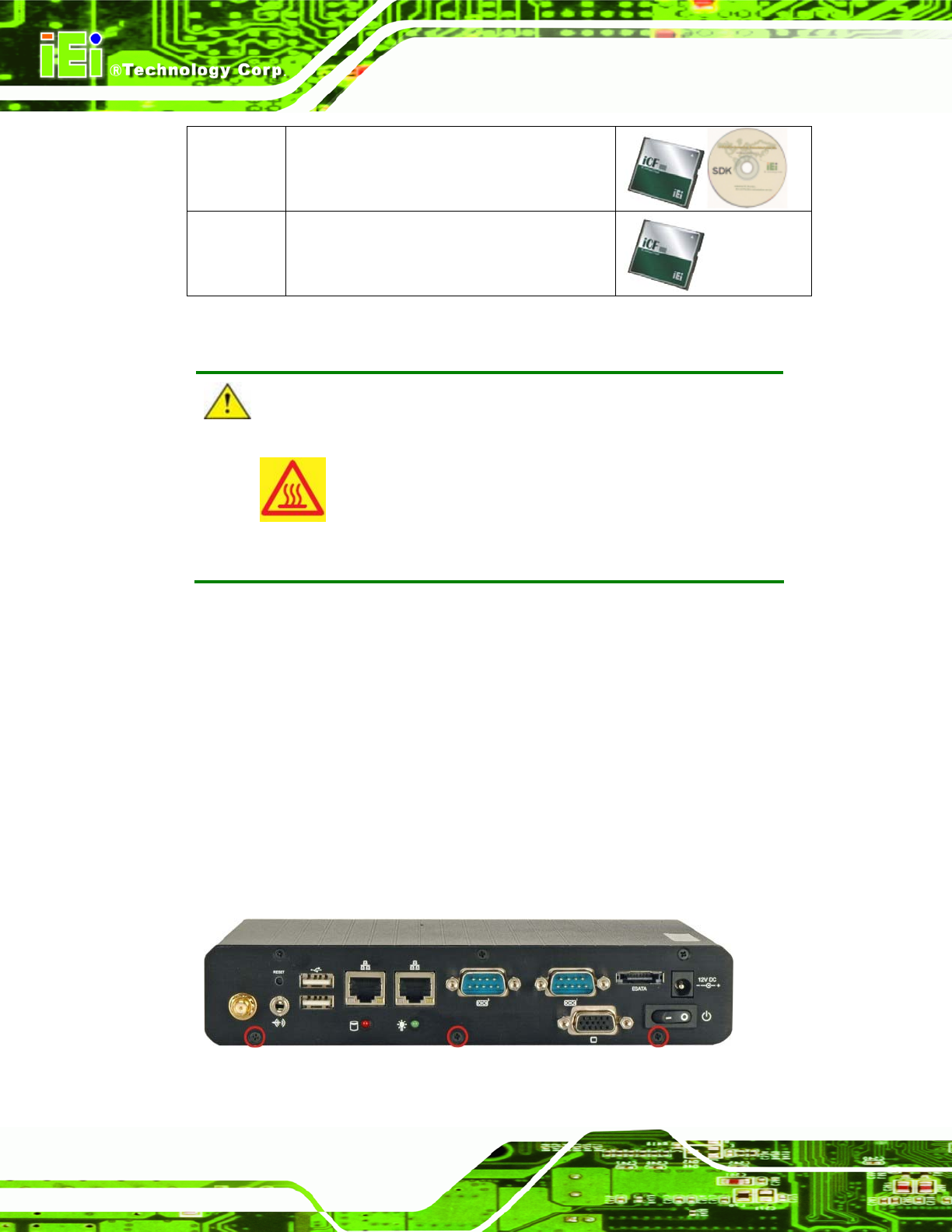

Figure 4-1: Bottom Cover Retention Screws (Front Panel)
