IBX-530B-270 Embedded System

Page 93

6.4 Audio Driver Installation

To install the audio driver, please do the following.

Step 1: Access the driver CD list.

Step 2: Click “Audio”

Step 3: The screen in

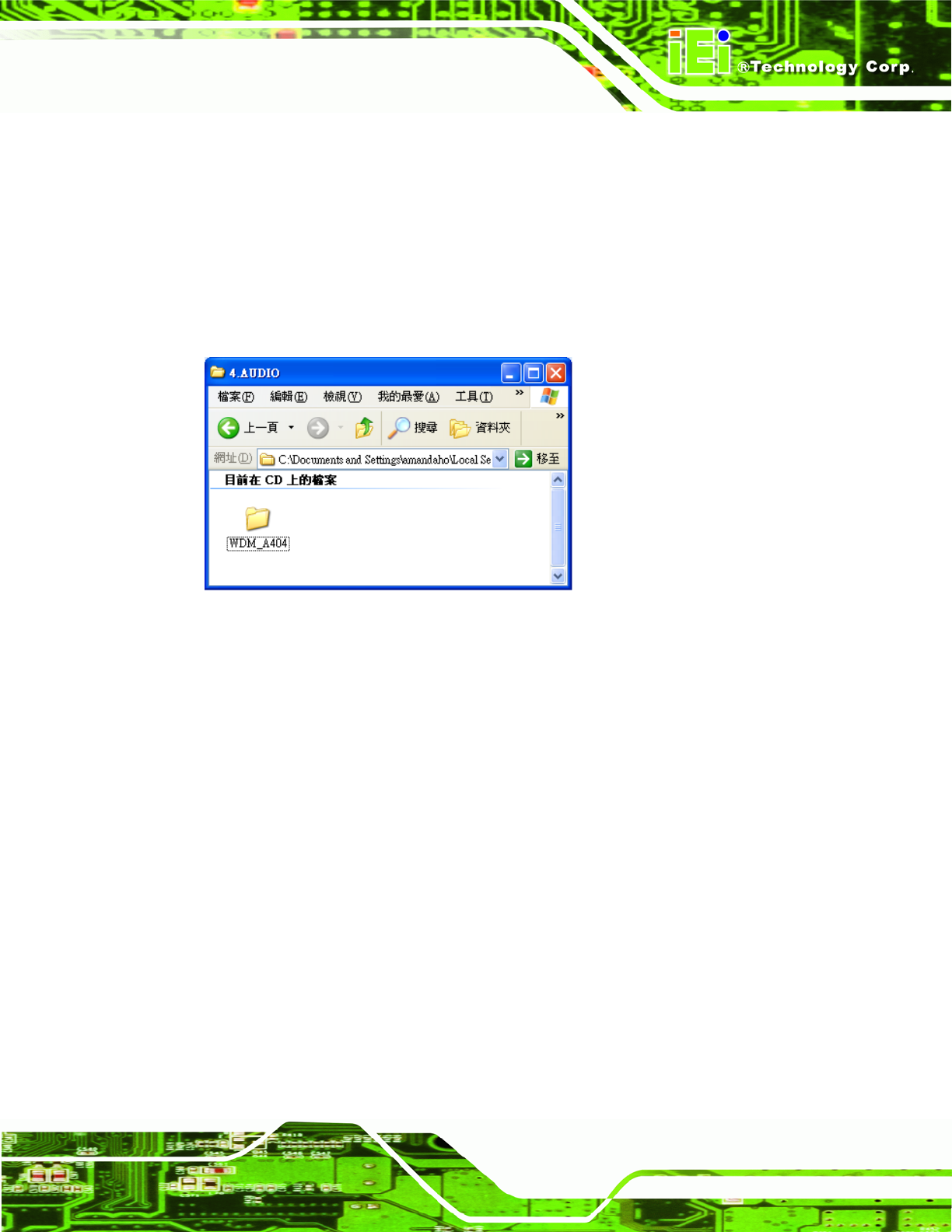

Figure 6-14 appears. Double click the “WDM_A404” folder.

Figure 6-14: Audio Driver Options

Step 4: Click the setup.exe icon.

Step 5: The AC’97 Driver Installation screen in

Figure 6-15 appears.

Step 6: Click Next to continue.
