3 - 2
3

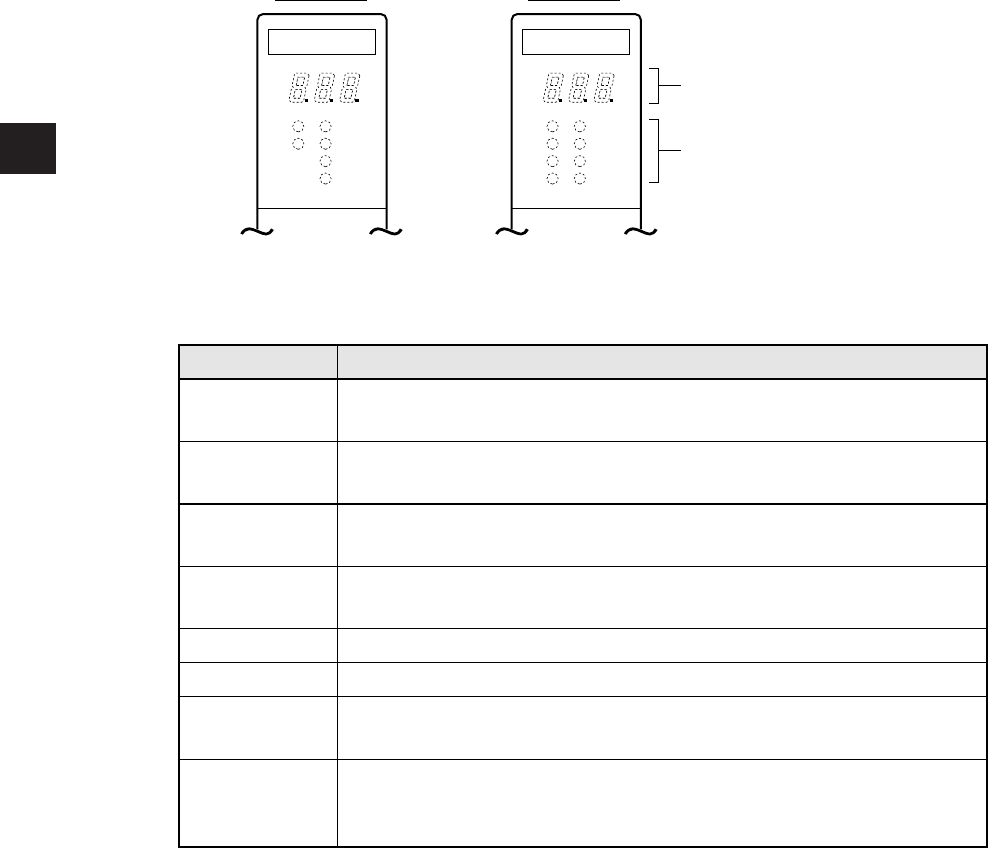

[1] Display panel
The operation status of this module is indicated by the state (lit, out, blinking) of LEDs on the display
panel.
JW-14PS
X
Y
Z
A
CW
CCW
READY
FAULT
JW-12PS
JW-12PS
X
Y
CW
CCW
READY
FAULT
JW-14PS
Segment display (red)
→See the following page.
LED display area
(red)
X
Operation state of X-axis
• At normal operation: lit, During a stop: out, During an error: blinking
Y
Operation state of Y-axis
• At normal operation: lit, During a stop: out, During an error: blinking
Z
(JW-14PS only)
Operation state of Z-axis
• At normal operation: lit, During a stop: out, During an error: blinking
A
(JW-14PS only)
Operation state of A-axis
• At normal operation: lit, During a stop: out, During an error: blinking
CW Lit at CW pulse output of axis (*)
* The axis turned on by "X, Y, Z, A" of a lamp
CCW Lit at CCW pulse output of axis (*)
READY
Ready signal
•
Lit when parameters, etc. are normally set and the unit is ready for operation
FAULT
LED Name Description
Error state
•
Blinking when an error occurs (Error code is displayed on segment LED.)
•
Lit when a watchdog timer error occurs (CPU runaway, etc.)
(1) LED display
