70 | Quick Start: Installing and setting up ShareScan
Specifying services for a connector profile
There are three core services available to connector profiles:
■ Document Settings
■ Scanner Settings
■ Tracing Settings
This section describes the basic process of configuring the Document Settings and Scanner
Setting services. For information about configuring Tracing Settings, see page 171.
To access the Services pane for a connector:
1 In the console tree, select Connectors.
2 Double-click Exchange.
3 Double-click Services.

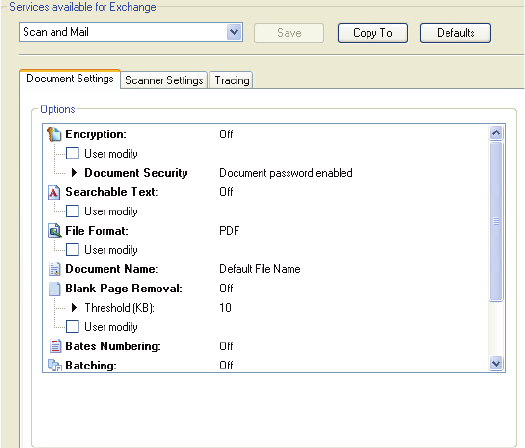

The Services available for Exchange pane appears.
