68 | Quick Start: Installing and setting up ShareScan
Configuring and activating connector
profiles
After licensing a device, you configure one or more profiles for each connector that you want to
use and then activate the profiles on a device.
When you configure a connector profile, you associate it with a button that appears on the main
ShareScan Client screen. When a user presses a button, the connector uses the properties and

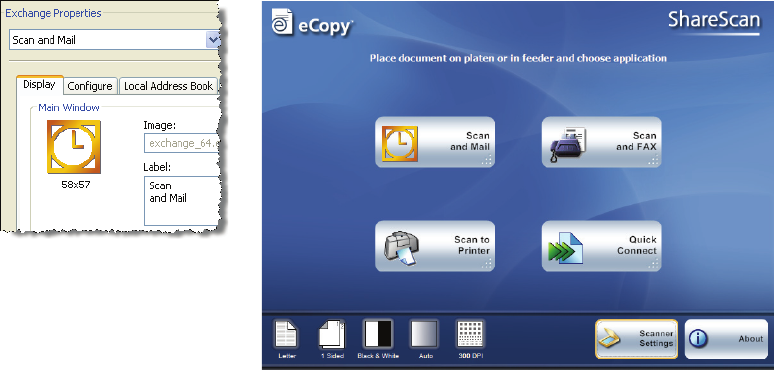

services specified in the connector profile associated with the button. For example, the following
screens illustrate the relationship between the Display properties for an Exchange connector
profile and the Scan and Mail button on the Client screen.
