eCopy ShareScan
®
Installation and Setup Guide | 37
To select a Services Manager:
1 Select Start > Programs > eCopy Applications > ShareScan Administration.

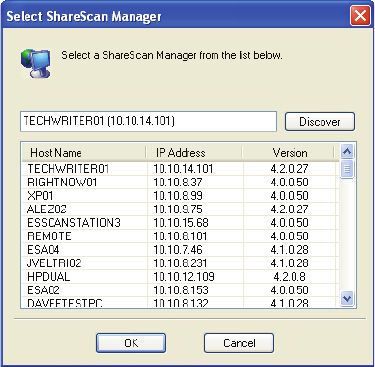

The Select ShareScan Manager window opens. The first Services Manager in the list is
most often the local computer, the one that you typically want to administer.
2 In the list, select the Services Manager that you want to use.
■ If the Services Manager that you want to use is not listed, click Discover to refresh the
list.
■ If the Services Manager is still not listed, enter the machine name and IP address in the
edit field, for example, enter
ECOPY1 (10.10.10.10).
