15-48
Chapter 15: Appendix
15

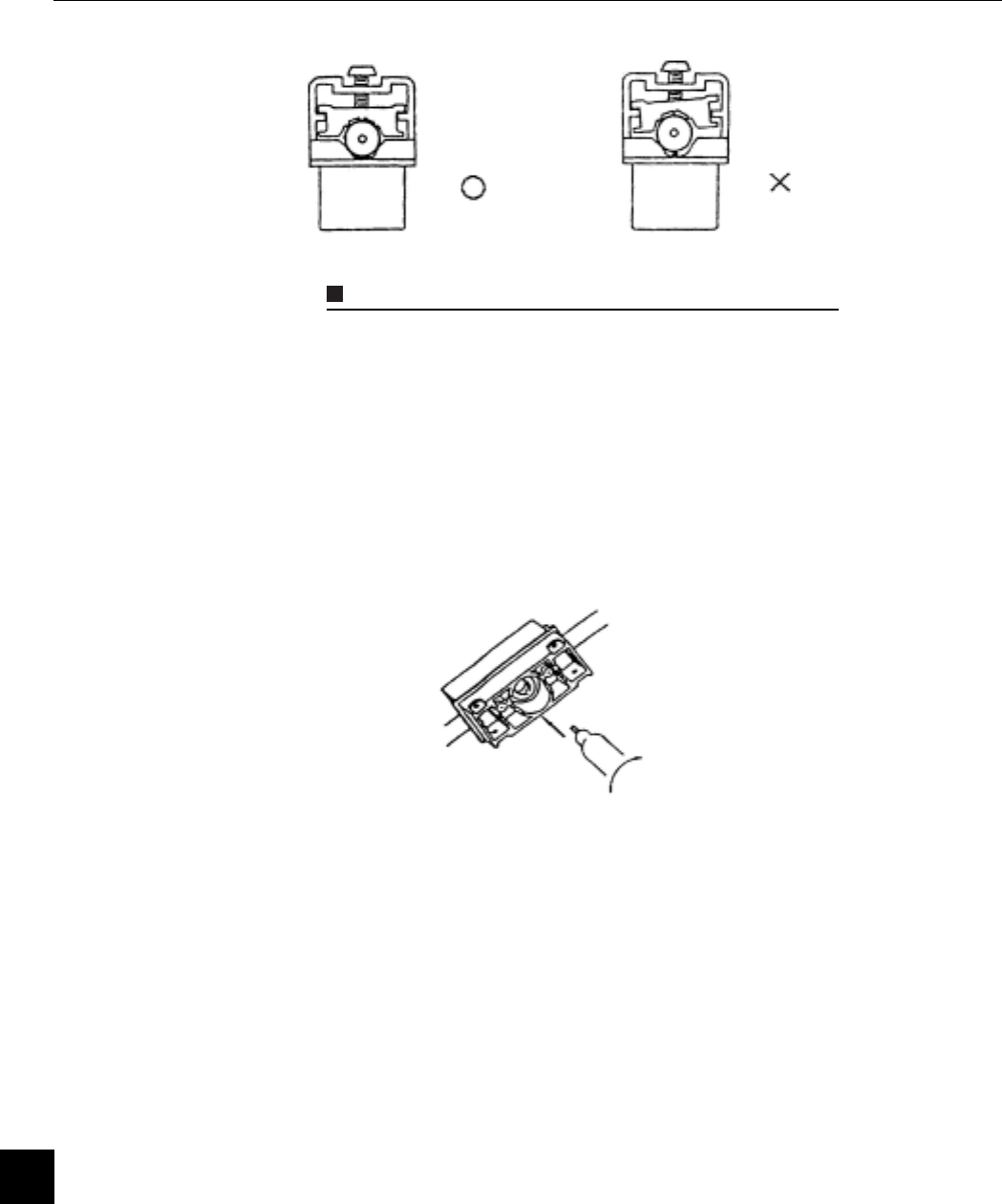

Insert into the transceiver tap frame and coaxial cable
Note: When inserting a frame, make sure that the cable is at the center of the crimping pin. Tighten
the screw a little and see if the clamping part is tilted very much. If so, loosen the screw and
reposition the cable so that frame is at the center of the tap.
5. Drill a hole for the core probe until white insulation material can be seen. (Please note that when
the securing screw is loosened, some aluminum tape may remain. Remove the plastic chips from
the hole.)
