AL-1551 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-5

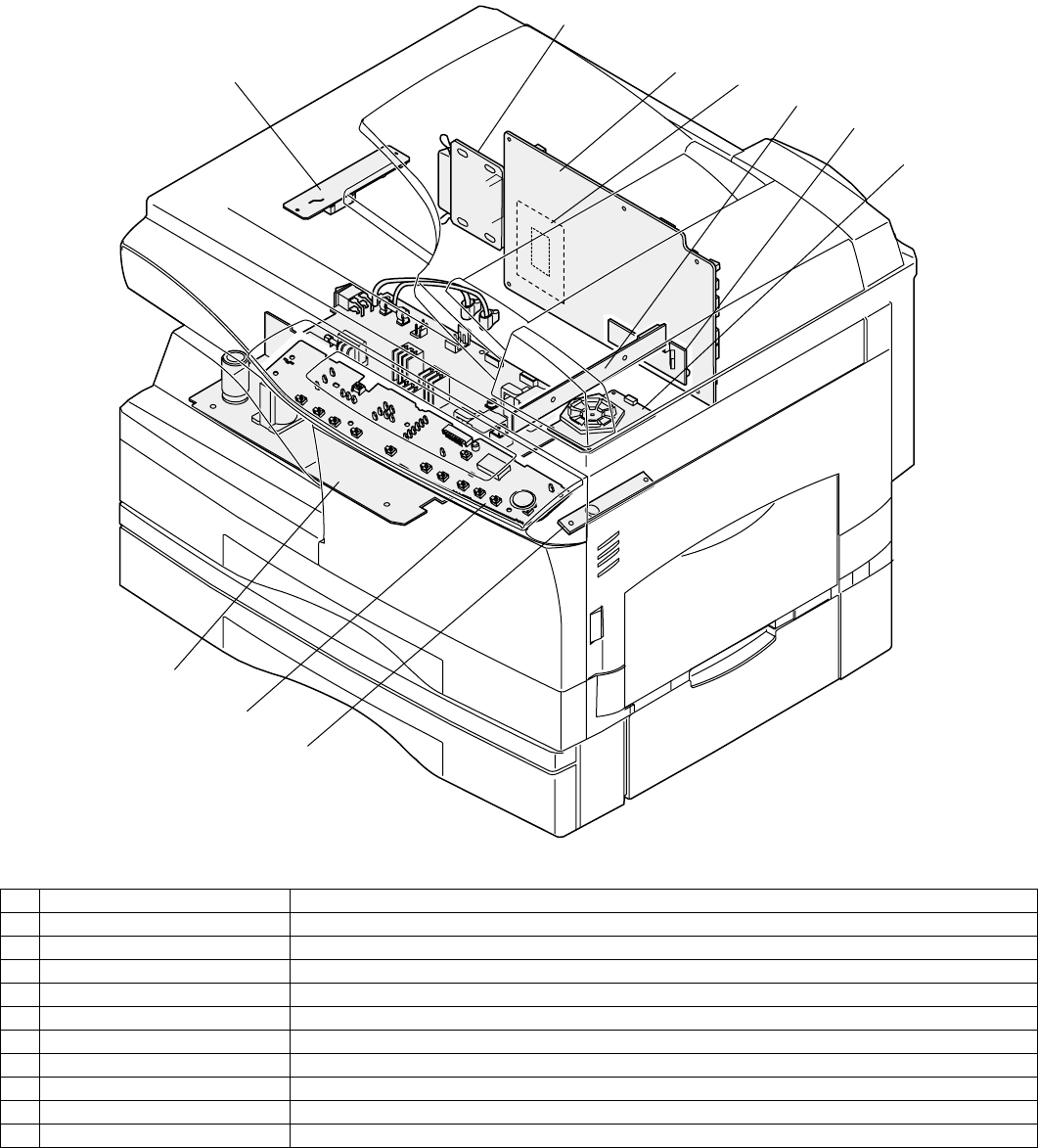

6. PWB unit

No. Name Function

1 Exposure lamp invertor PWB Exposure lamp (Xenon lamp) control

2 Main PWB (MCU) Copier control

3 Operation PWB Operation input/display

4 Power PWB AC power input, DC voltage control, High voltage control

5 CCD sensor PWB For image scanning

6 LSU motor PWB For polygon motor drive

7 TCS PWB For toner sensor control

8 LSU PWB For laser control

9 Memory PWB 6MB For memorying data

10 GDI Printer PWB GDI Printer control
