AL-1551 DISASSEMBLY AND ASSEMBLY 8-22

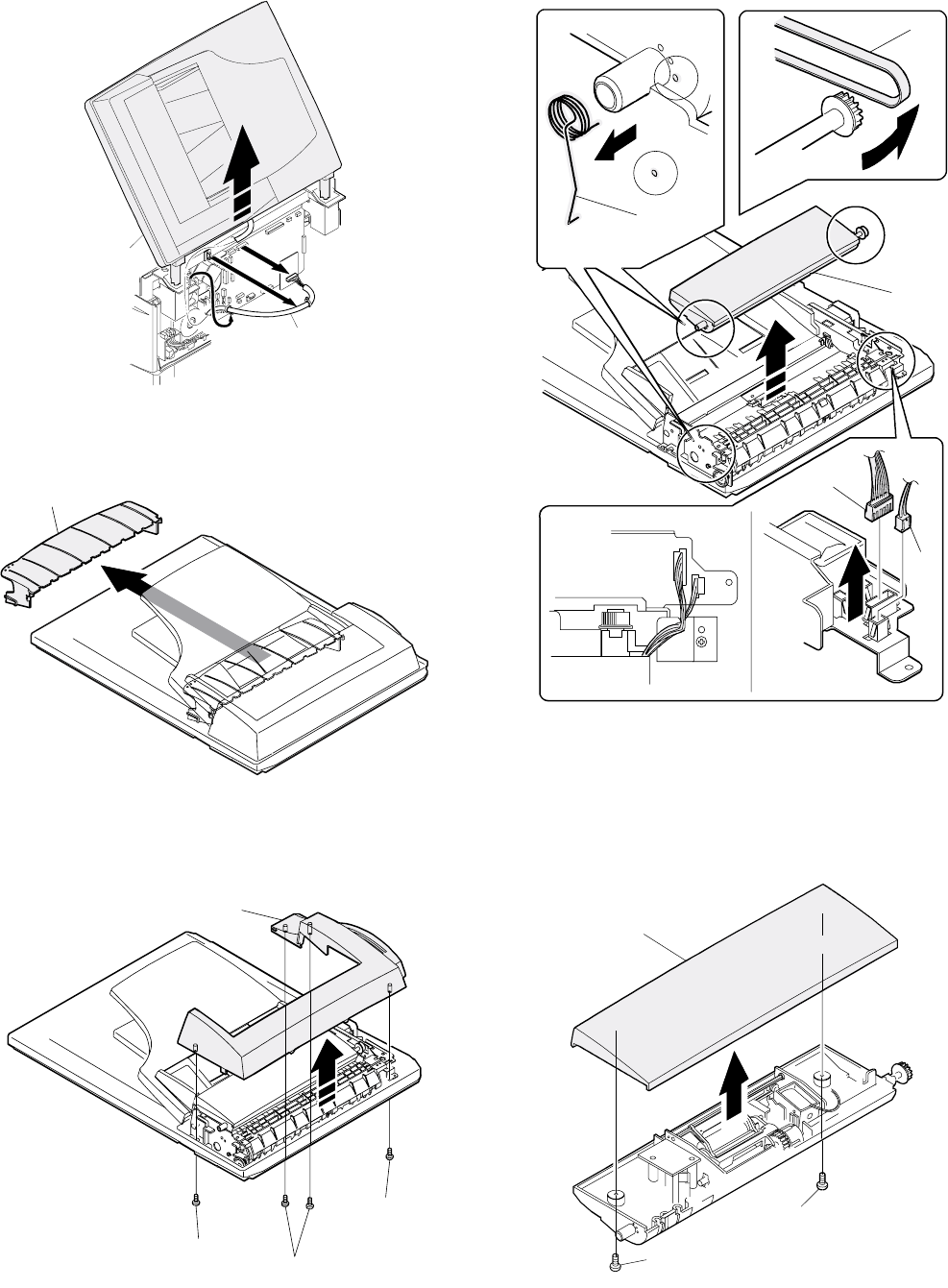

(3) Remove the RSPF.

1) Remove the connector and the cable.

2) Remove the RSPF.

B. Intermediate tray

1) Remove the intermediate tray.

C. Upper cover

1) Remove four screws from the bottom of the main body.

2) Remove the upper cover.

D. Pickup unit

1) Remove the belt, the paper feed frame spring, and two harnesses.

2) Remove the pickup unit.

Note:When reassembling, be careful of the hole position for the paper

feed frame spring.

E. Upper cover of the pickup unit.

1) Remove two screws from the bottom of the pickup unit.

2) Remove the upper cover.
