AL-1551 DISASSEMBLY AND ASSEMBLY 8-15

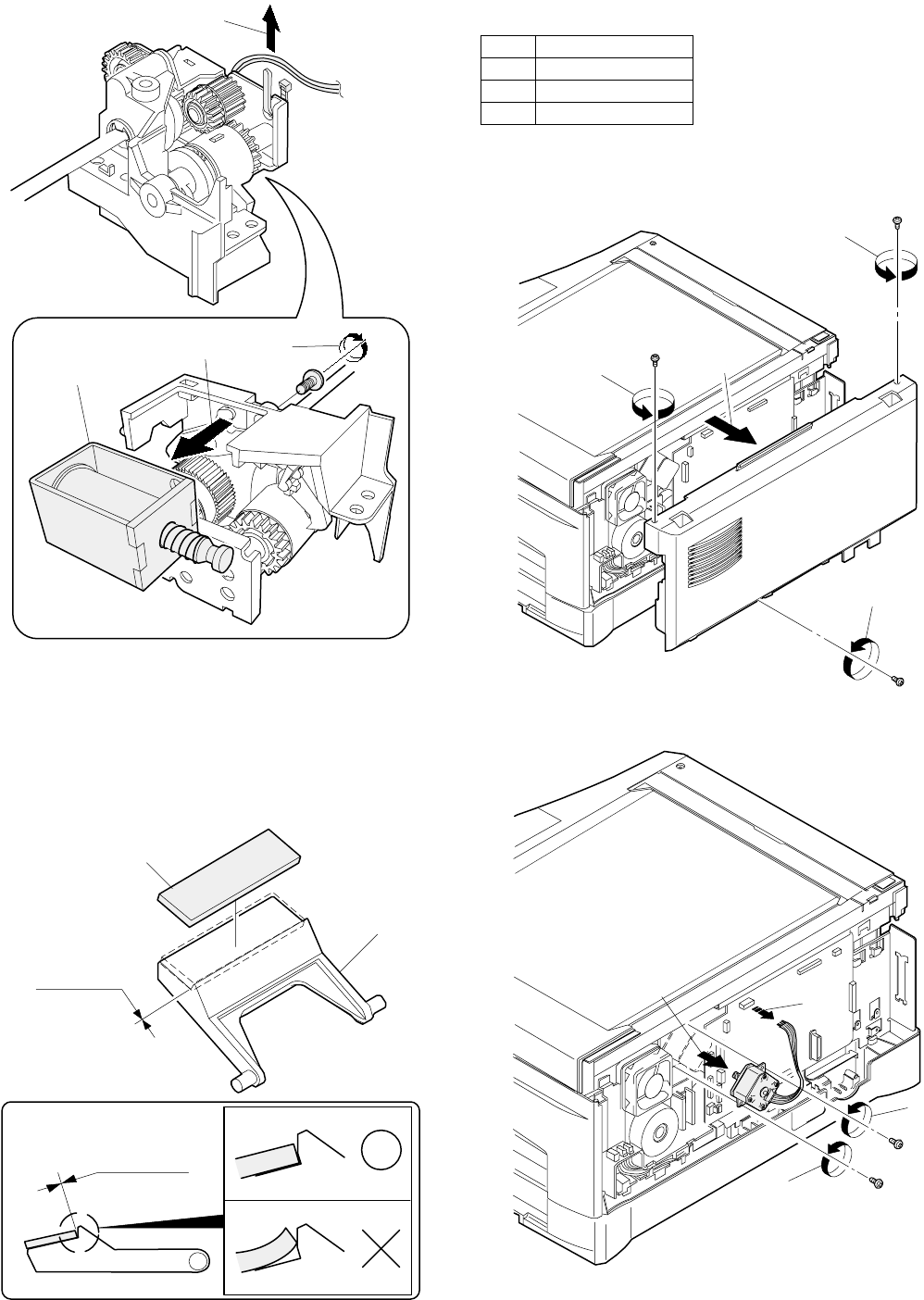

7) Cut the binding band and remove the multi paper feed solenoid.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
D. Pressure plate holder attachment
1) Attach the pressure plate holder so that the resin section is not
covered with the seal M1-N.
7. Rear frame section
A. List
B. Disassembly procedure
1) Remove three screws and remove the rear cabinet.
2) Remove two screws, the harness, and the mirror motor.
1)
2)
3)
Multi paper feed
solnoid
Pressure plate
holder
Seal M1-N
Attachment
reference
Attachment
reference
No. Part name Ref.
1 Mirror motor
2 Main motor
3 Exhaust fan motor
1)
2)
1)
1)
2)
1)
2)
3)
