AL-1551 UNPACKING AND INSTALLATION 5-3

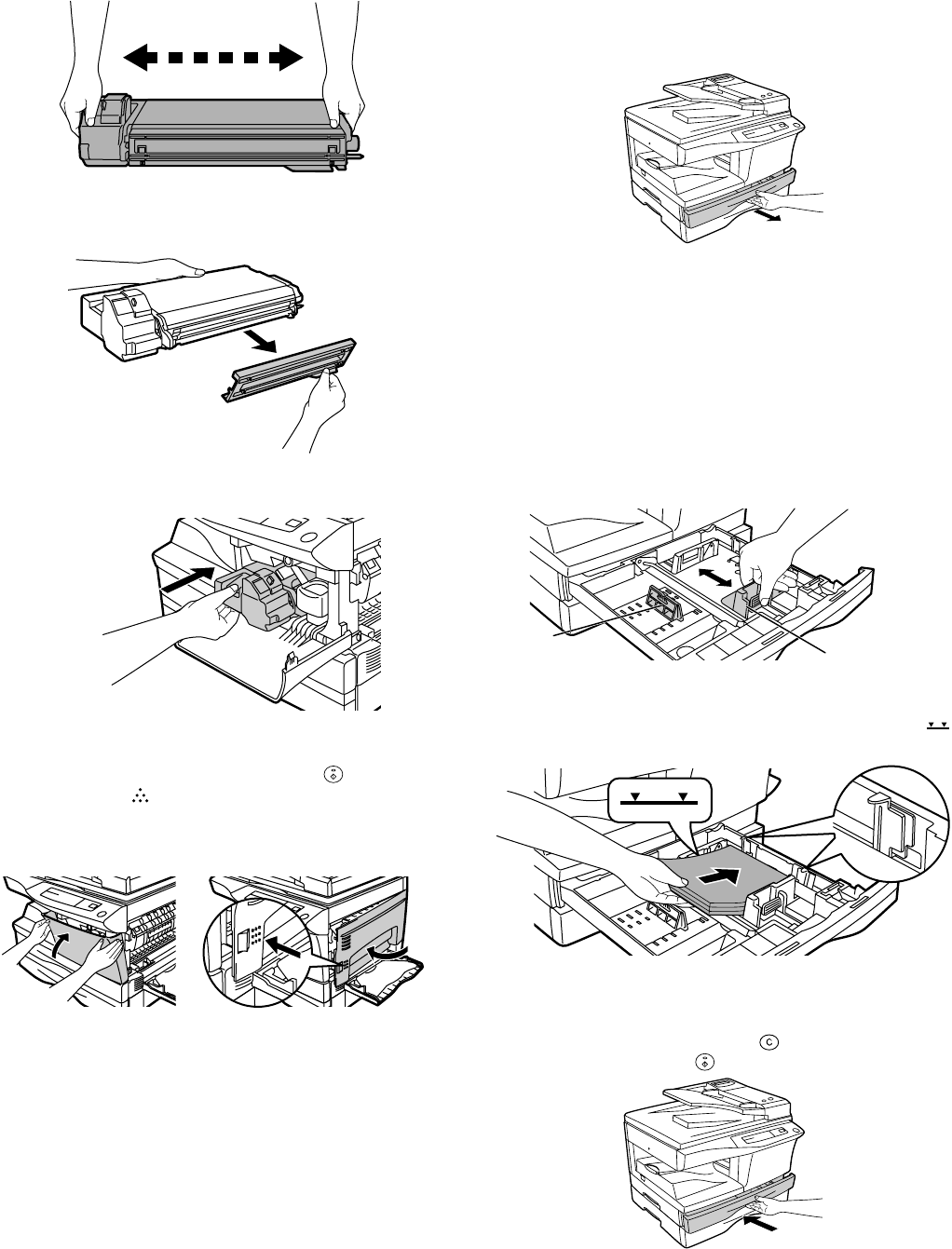

4) Remove the TD cartridge from the bag. Remove the protective paper.
Hold the cartridge on both sides and shake it horizontally four or five
times.
5) Hold the tab of the protective cover and pull the tab to remove the
cover.
6) Gently insert the TD cartridge until it locks in place.
7) Close the front cover and then the side cover by pressing the round
projections near the side cover open button. The indicator will go
out and the ready ( ) indicator will light up.
Note: When closing the covers, be sure to close the front cover securely
and then close the side cover. If the covers are closed in the wrong
order, the covers may be damaged.
7. Loading copy paper
Note:This copier is equipped with two paper trays. Load copy paper into
the two paper trays.
1) Raise the handle of the paper tray and pull the paper tray out until it
stops.
2) Remove the pressure plate lock. Rotate the pressure plate lock in the
direction of the arrow to remove it while pressing down the pressure
plate of the paper tray.
3) Store the pressure plate lock which has been removed in step 2 and
the screw which has been removed when unpacking in the front of
the paper tray. To store the pressure plate lock, rotate the lock to fix it
on the relevant location.
4) Adjust the paper guides on the paper tray to the copy paper width
and length.
Squeeze the lever of paper guide (A) and slide the guide to match
with the width of the paper.
Move paper guide (B) to the appropriate slot as marked on the tray.
5) Fan the copy paper and insert it into the tray. Make sure the edges go
under the corner hooks.
Note:Do not load paper above the maximum height line ( ).
Exceeding the line will cause a paper misfeed.
6) Gently push the paper tray back into the copier.
Note:After loading copy paper, to cancel the blinking "H" without
restarting copying, press the clear ( ) key. The "P" in the display
will go out and the ready ( ) indicator will light up.
4 or 5 times
Paper guide (B)
Paper guide (A)
