Operating in Manual Mode
3-28 Tenth Edition 9871

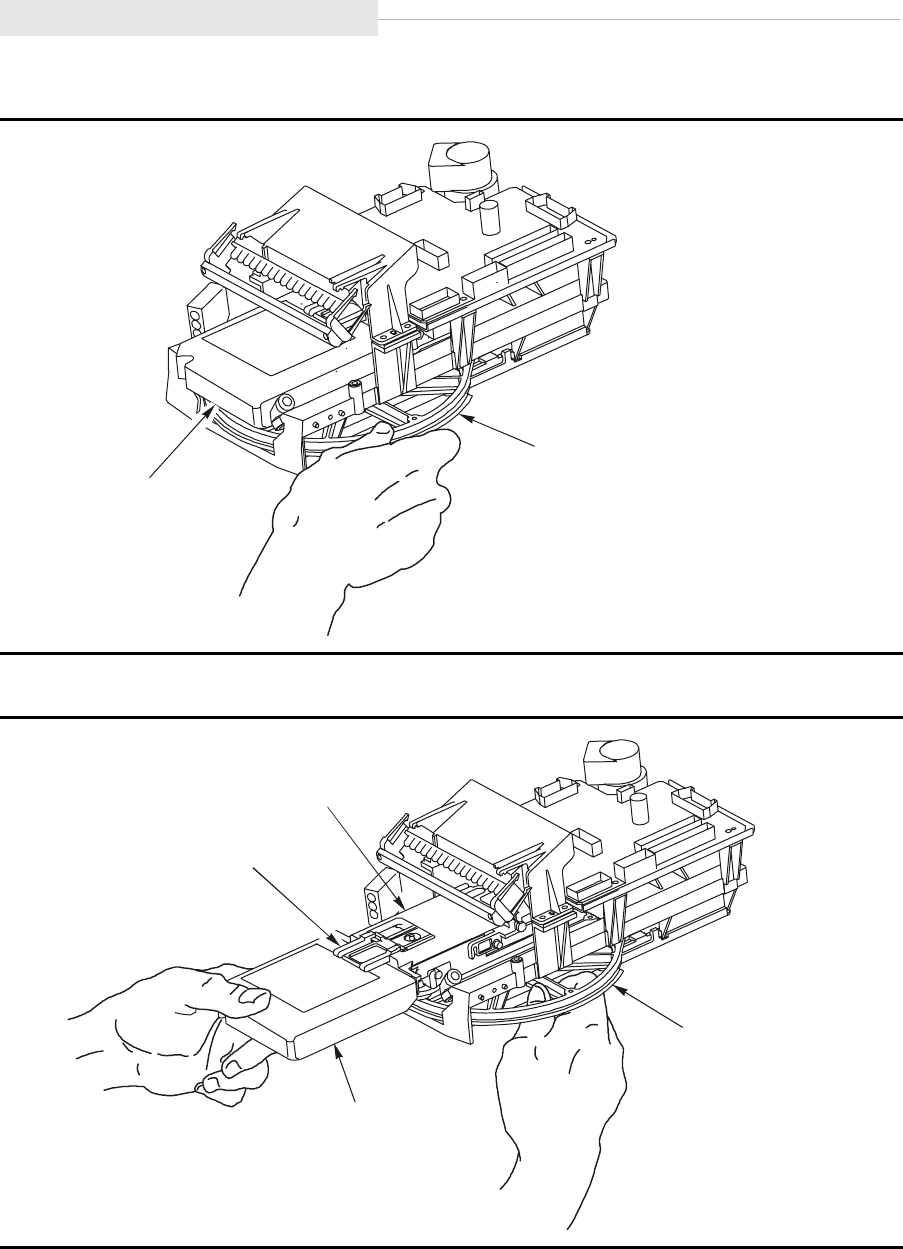

Figure 3-19. Extending the Gripper Assembly
Figure 3-20. Removing a Cartridge from the Hand Assembly
C40061
REACH
MECHANISM
BELT
DRIVE
TAPE
CARTRIDGE
(SHOWN
RETRACTED)
GRIPPER
MECHANISM
REACH
MECHANISM
(SHOWN
EXTENDED)
REACH
MECHANISM
BELT
DRIVE
TAPE
CARTRIDGE
C4025
