Operating in Automated Mode
3-14 Tenth Edition 9871
Entering Cartridges through the PCAP
To enter cartridges through the PCAP:
1. Issue the enter command at the operator console.
• The PCAP status display area on the LSM operator panel displays
ENTER.
2. Open the PCAP door as shown in Figure 3-9.
• The panel displays Door Open.

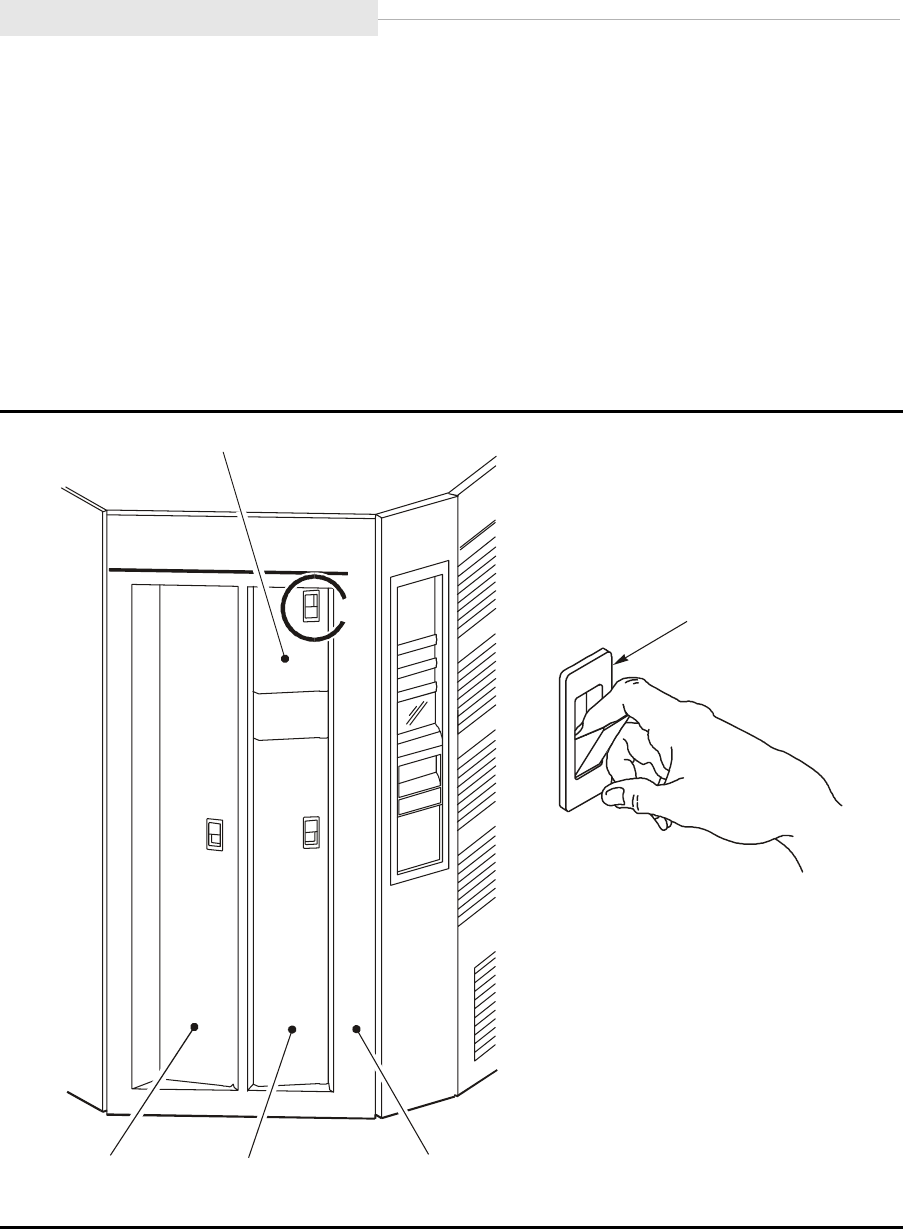

Figure 3-9. Priority Cartridge Access Port, Closed
A
C
4
00
4
0
P
C
AP
CAP 0CAP 1
(OPTIONAL)
LSM
ACCESS
D
OO
R
DETAIL A
PCAP
LATCH
- 9360/30/15/12 1
