P/N 13999-002 Info Manual 4-5
Cirrus Design Section 4
SR20 Normal Procedures
Normal Procedures
Preflight Inspection
Before carrying out preflight inspections, ensure that all required
maintenance has been accomplished. Review your flight plan and
compute weight and balance.
• Note •
Throughout the walk-around: check all hinges, hinge pins, and
bolts for security; check skin for damage, condition, and
evidence of delamination; check all control surfaces for proper
movement and excessive free play; check area around liquid
reservoirs and lines for evidence of leaking.
In cold weather, remove all frost, ice, or snow from fuselage,
wing, stabilizers and control surfaces. Ensure that control
surfaces are free of internal ice or debris. Check that wheel
fairings are free of snow and ice accumulation. Check that
pitot probe warms within 30 seconds of setting Pitot Heat to
ON.
SR20_FM04_1001
2
4
13
12
11
10
9
8
7
6
5
1
3

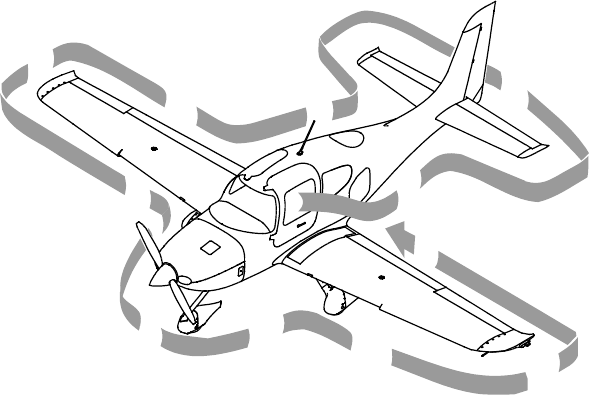

Figure 4-1
Walk-Around
September 2011
