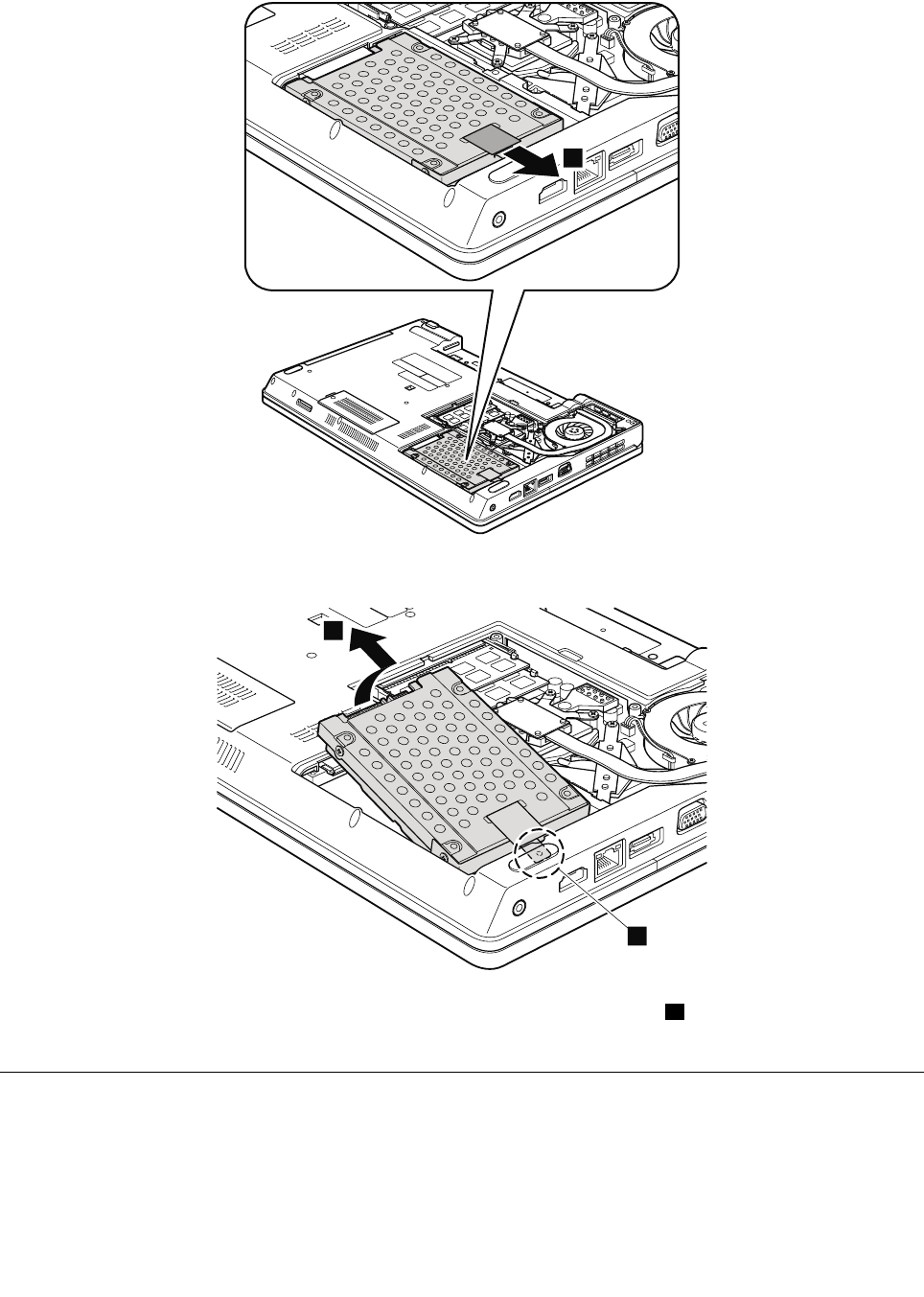

Removalstepsoftheharddiskdriveassembly
1
Wheninstalling:Makesurethattheharddiskdriveconnectorisattachedrmly.
2
a
Wheninstalling:Donotapplyexcessiveforcetotheharddiskdrivebracketa.Todoso,youmight
bendorbreakit.
1050Memorymodule
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage58
•“1030Thermalcover”onpage59
Chapter8.RemovingorreplacingaFRU61
