Misfeed in the duplex module

●

The duplex module is optional.

NOTE:

If any other misfeed locations are indicated, be sure to remove any

misfed paper from these locations before performing the procedure

described below. If not, a sheet of paper in another location may

become torn and difficult to remove.

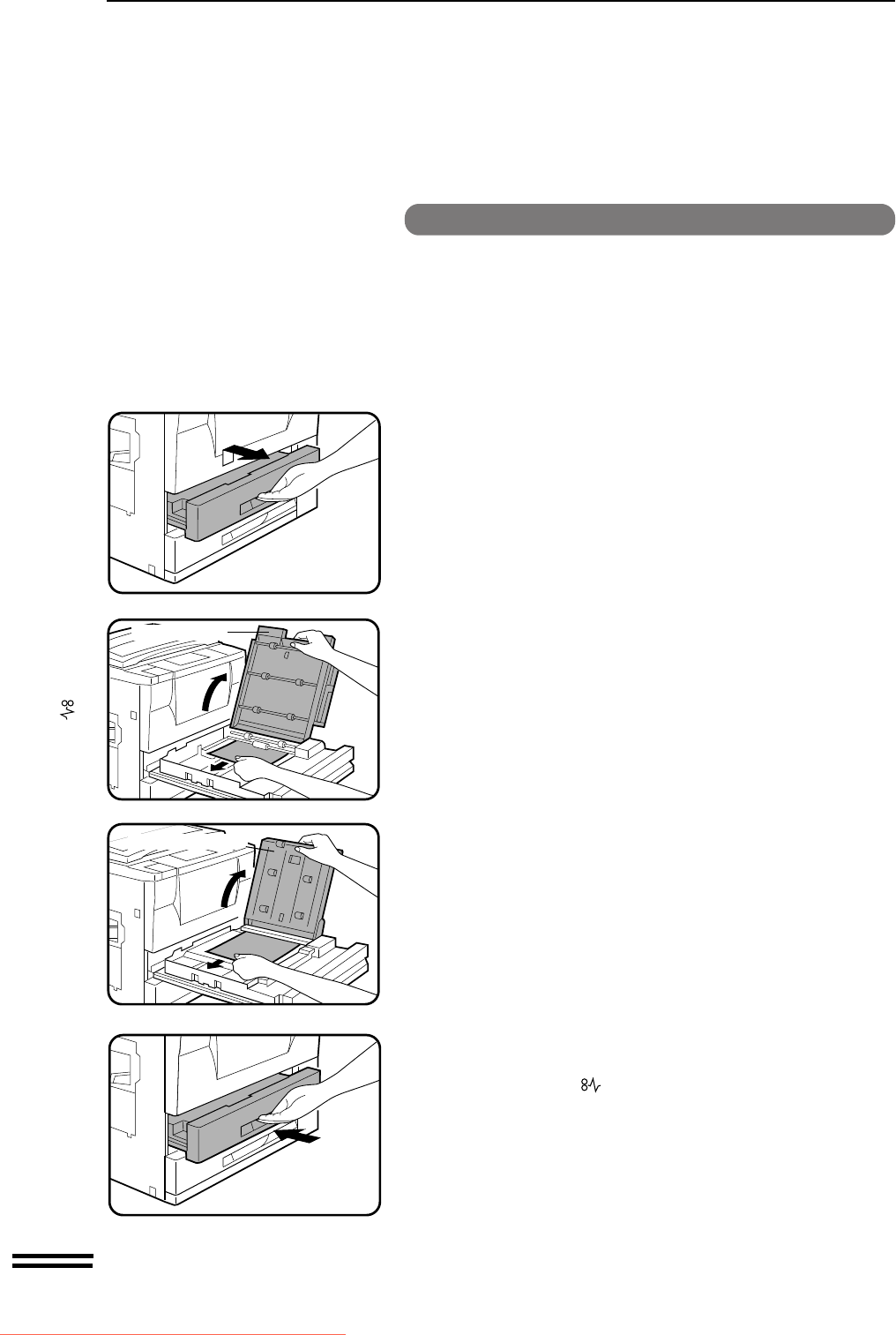

Pull out the duplex module.

Lift up the upper and lower paper guides, and remove

the misfed paper.

●

When a misfeed occurs between the paper guides, open the

upper paper guide and remove the misfed paper.

Close the paper guides and push back the duplex

module.

●

Confirm that the indicator has gone out.

Misfeed removal

Paper guides

Upper paper guide
