6

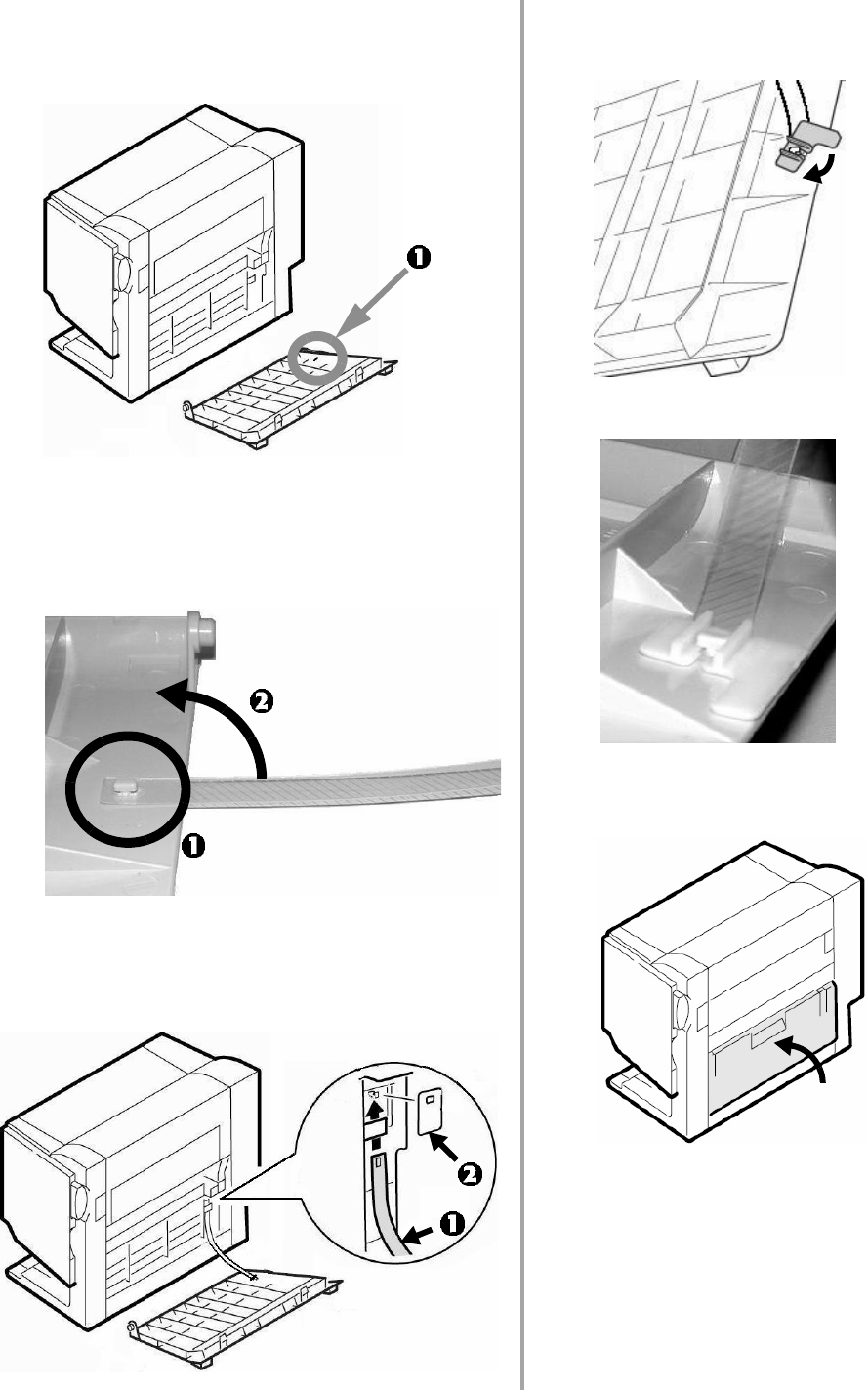

3. Place the finisher cover near the back of the

finisher. Locate the tab (

!

) on the right side of

the cover.

4. Hold the clear band perpendicular to the cover

and slip one end over the tab (

!

), then pivot

the band 90 degrees (

"

) so that it is aimed

toward the finisher:

5. Slip the other end of the band (

!

) through

the retainer on the finisher and secure it

with the small stopper (

"

).

6. Place the large stopper over the tab on the

cover and turn it to lock it in position.

7. Attach the cover to the finisher and close it.
