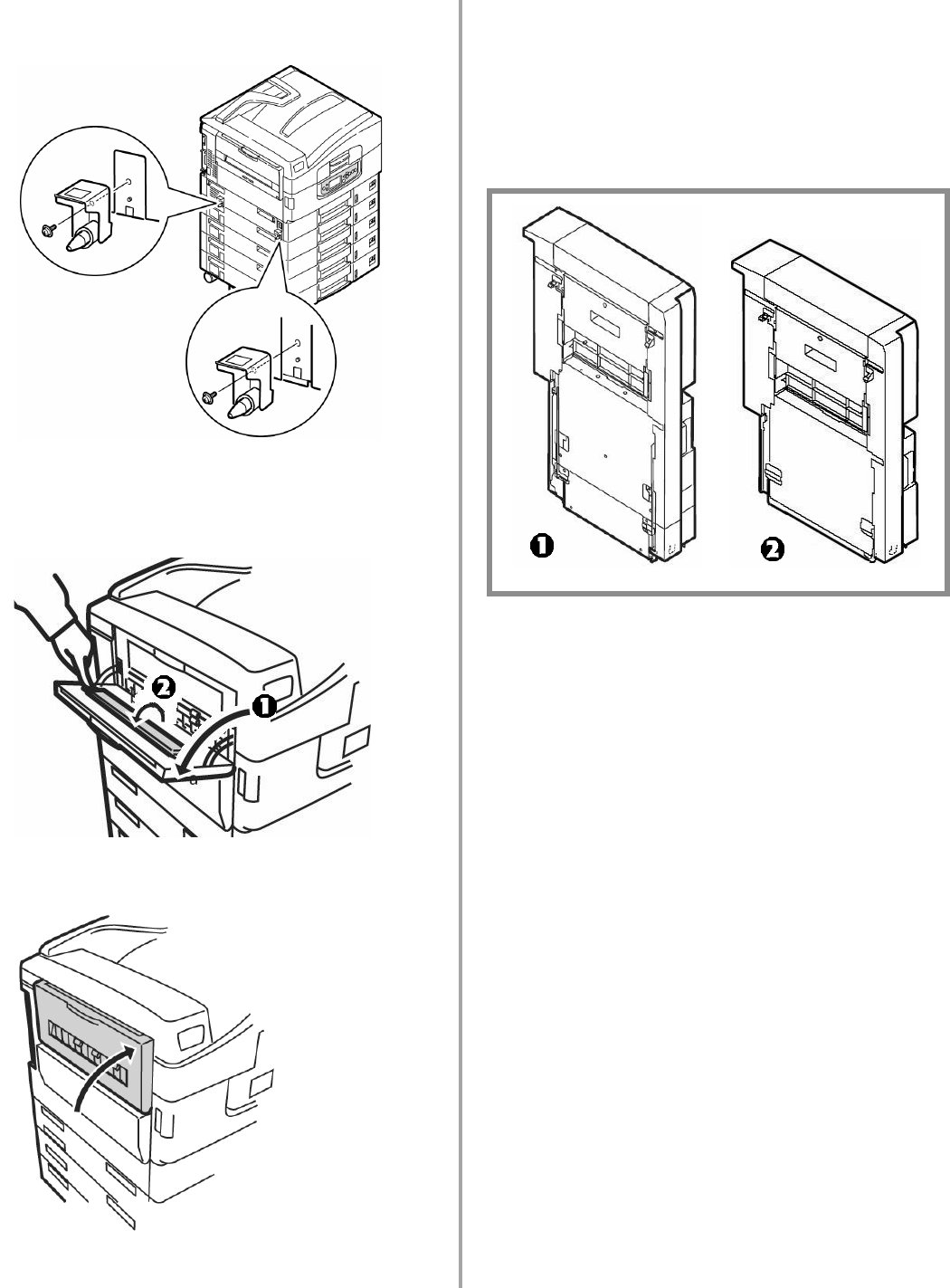

3. Install the metal brackets where the

breakout panels were.

4. Open the face-up stacker (

), then open

the flap and press it onto the stacker surface

(

5. Close the stacker.

Step 2: Prepare the Inverter

Before assembling the finisher, you must adjust the

height of the inverter unit to match the finisher:

Inverter as supplied

Inverter changed for use with 4-tray

finisher.

1. Unpack the inverter and remove any packing

materials.
