5

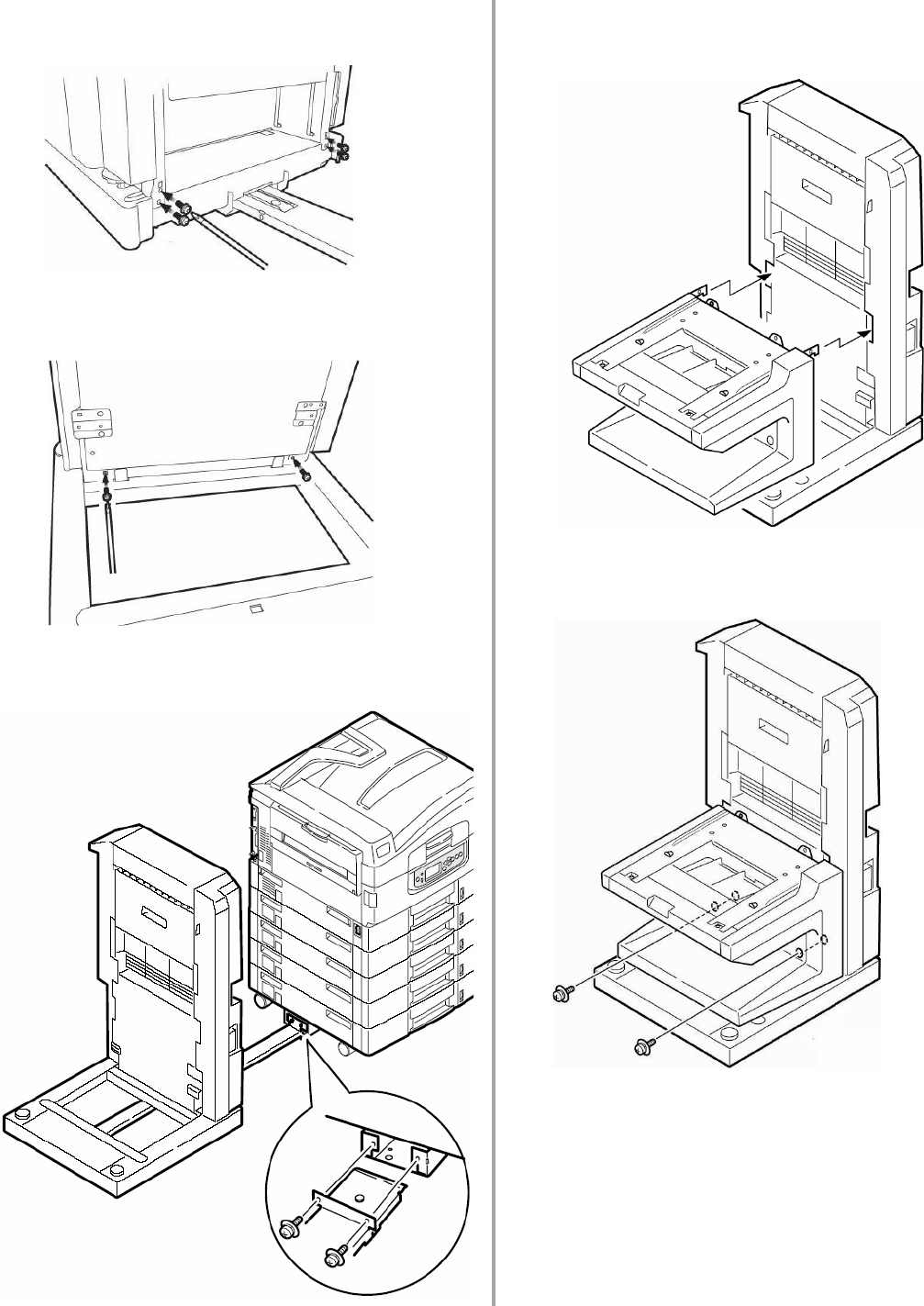

2. Attach the front of the inverter to the stand

using two screws on either side.

3. Attach the back of the inverter to the stand

using one screw on either side.

4. Attach the guard rail on the inverter stand to

the printer using 2 screws.

Step 4: Assemble the Finisher

1. Hook the finisher stand onto the inverter.

2. Attach the finisher stand to the inverter with

2 screws.
