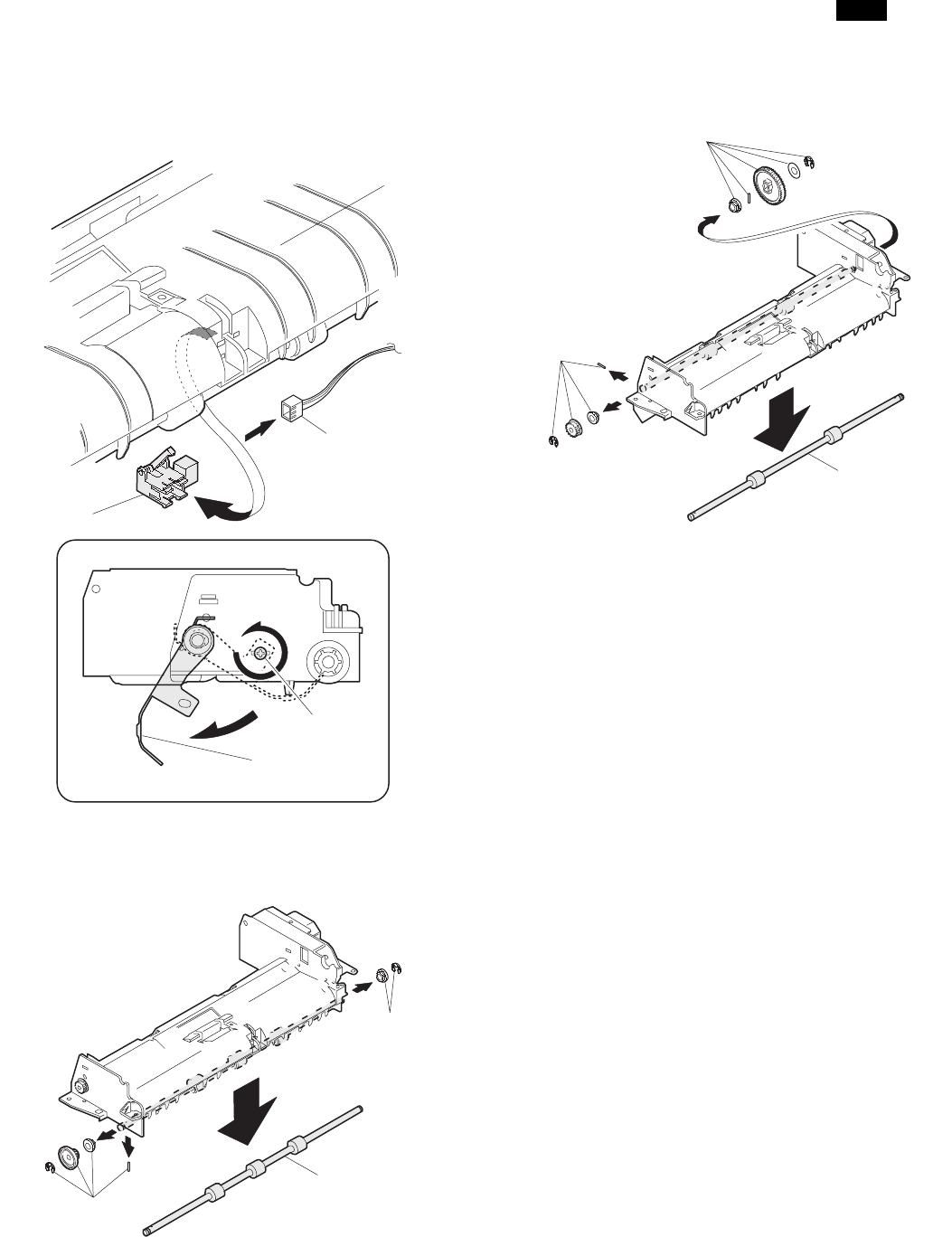

O. Remove the paper entry sensor.

1) Loosen the screw.

2) Open the paper exit PG.

3) Remove the paper entry sensor.

4) Remove the connector.

P. Remove the PS roller.

1) Remove the parts.

2) Remove the PS roller.

Q. Remove the paper exit roller.

1) Remove the parts.

2) Remove the paper exit roller.

16. Procedures after replacement of FAX

ROM (AR-F152 only)

After replacement of FAX ROM, perform the following procedures.

●

Perform the FAX software switch clear and the FAX image

memory clear.

1) FAX software clear procedure

On the Fax operation panel: FUNCTION → 9 → ∗ → 8 → # →

ENTER → 0 → 2 → 1

2) FAX image memory clear procedure

On the FAX operation panel: FUNCTION → 9 → ∗ → 8 → # →

ENTER → 1 → 0 → 1

(Note)

When the ROM version is upgraded, the area used by each job

for D-RAM memory area may vary. Therefore, this procedure

must be performed after repalcement of ROM to stabilize the

operation.

Perform this procedure immediately after turning OFF/ON the

power after replacement of ROM.

AR-F152

7 – 34
