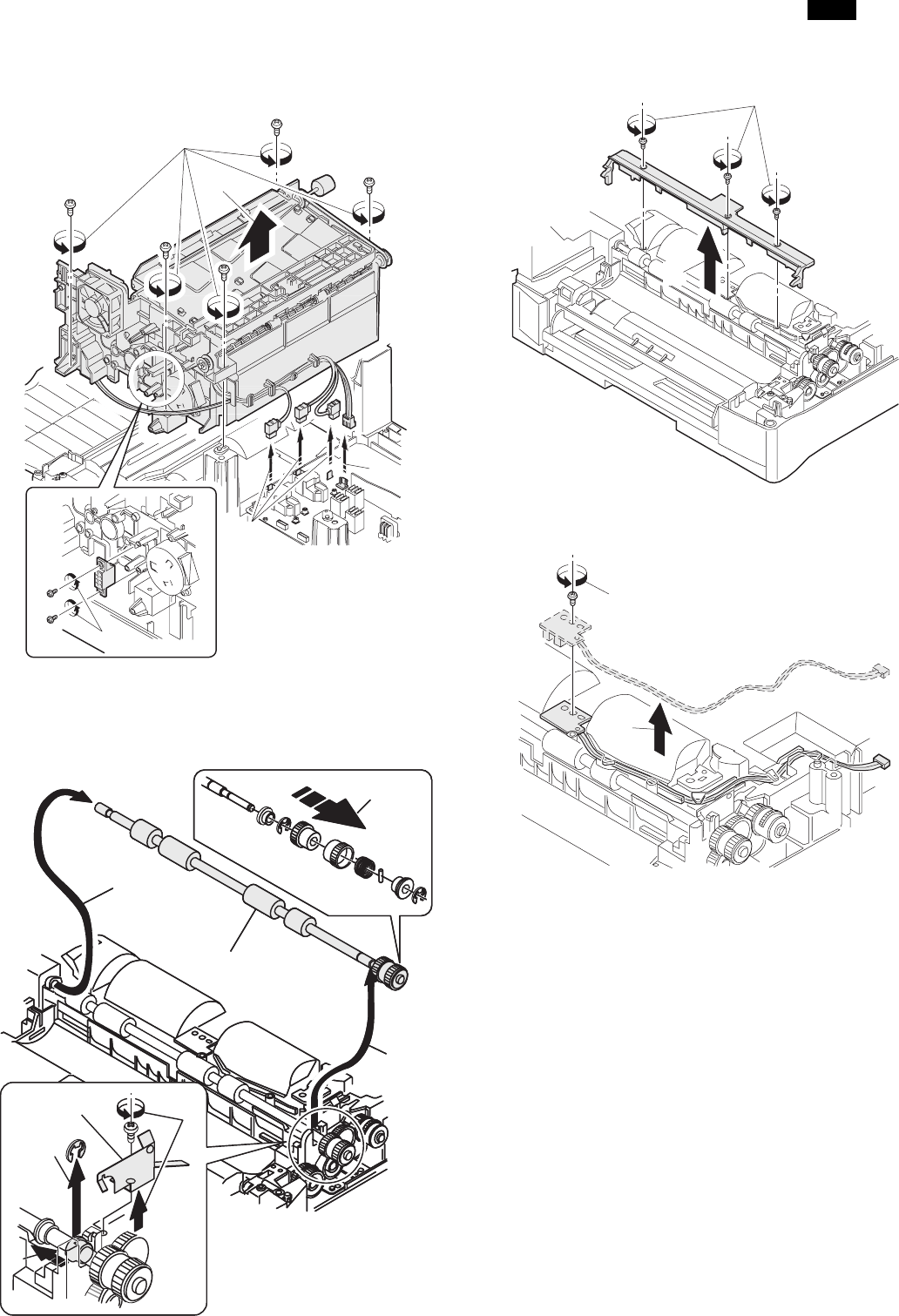

(13) Remove two screws and remove the fusing connector.
(14) Remove five screws and the connector, and lift the intermediate
frame unit to remove.
(15) Remove the screw and the E-ring, and remove the PS semi-cir-
cular earth plate and the PS roller unit.
(16) Remove the E-ring and remove the spring clutch from the PS
roller unit.
(17) Remove three screws and remove the TC front paper guide.
(18) Remove the screw and the connector, and remove the PPD1
sensor PWB.
2)
2)
3)
4)
1)
5)
4)
4)
1)
2)
3)
PS roller unit
PS semi-circuler
earth plate
5)
4)
4)
1)
2)
3)
PS roller unit
PS semi-circuler
earth plate
1)
2)
1)
2)
AR-F152
7 – 12
