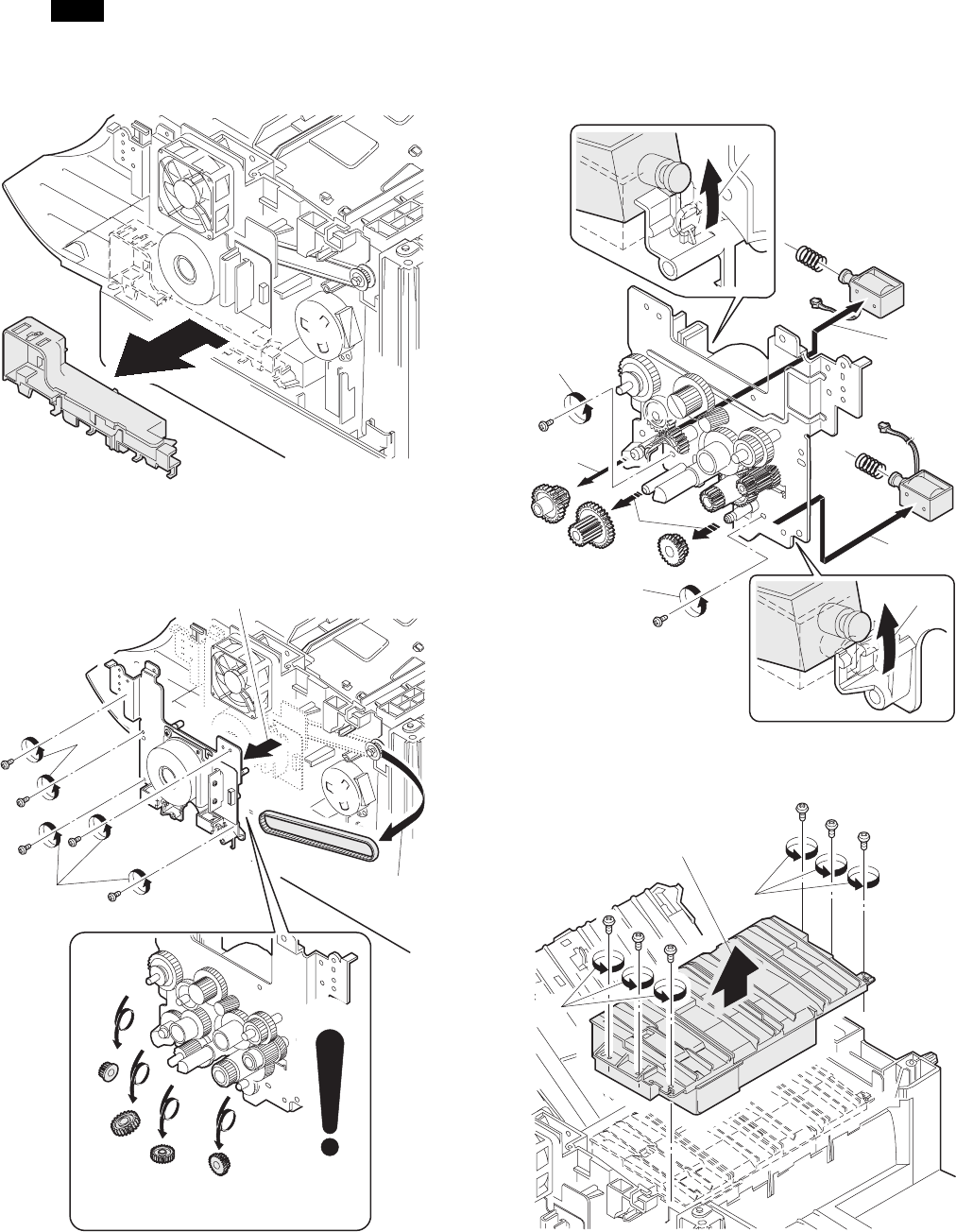

(9) Remove the harness guide.
(10) Remove five screws and remove the main drive plate and the
belt.
(11) Remove the parts as shown below, and remove the pressure
release solenoid and the paper feed solenoid.
(12) Remove six screws and remove the LSU unit.
1)
3)
2)
1)
CAUTION:Attach
the gears
securely
3)
3)
1)
1)
2)
2)
4)
4)
1)
1)
2)
AR-F152
7 – 11
