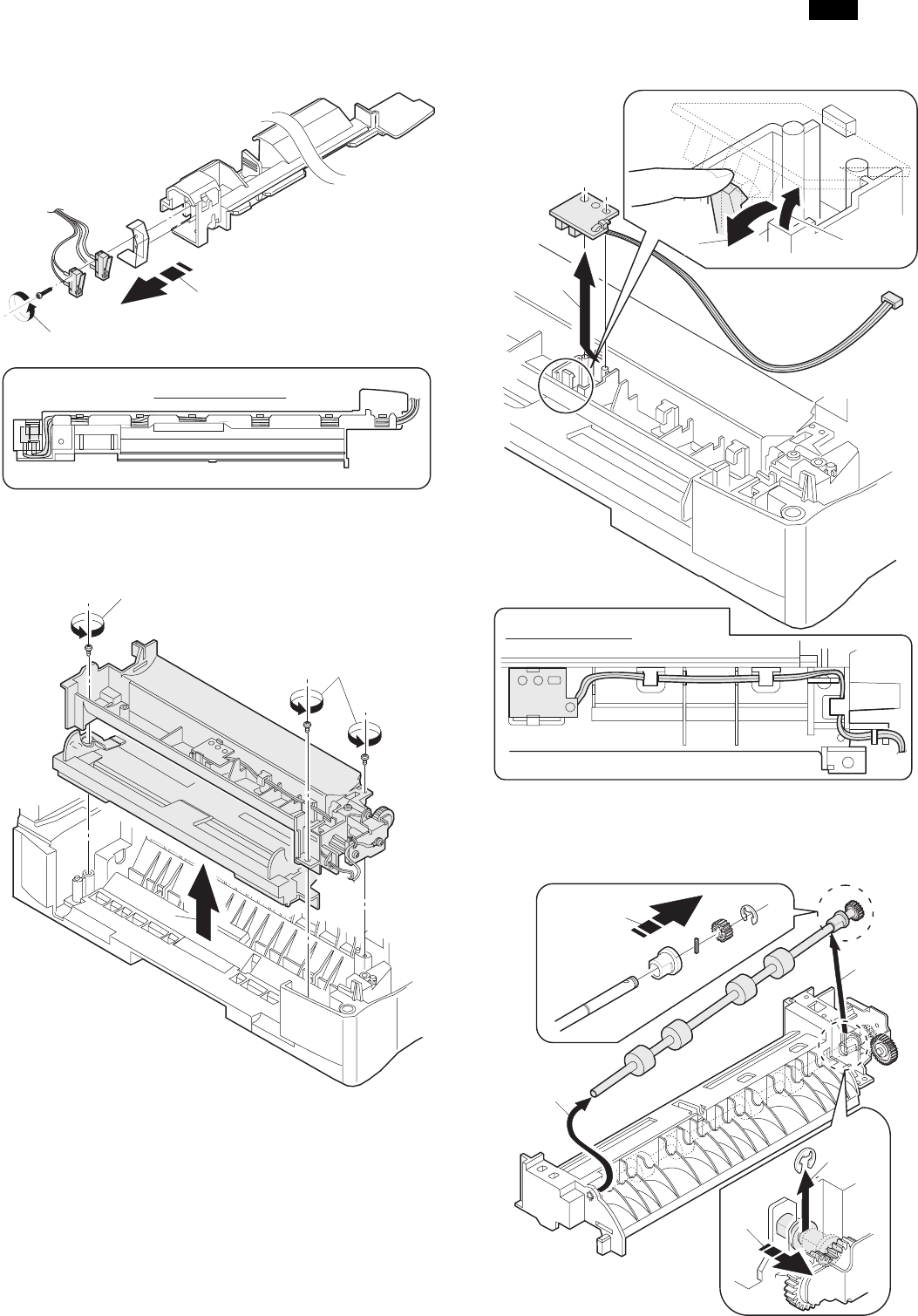

(2) Remove the screw and remove the side door detection unit.
(3) Remove three screws and remove the single manual feed upper
frame.
(4) Remove the PPD1 sensor PWB.
(5) Remove the E-ring and remove the manual paper feed transport
roller.
1)
2)
Back
Wire treatment
1)
2)
1)
3)
1)
2)
Wire treatment
3)
3)
4)
1)
2)
AR-F152
7 – 14
