Troubleshooting
Problems and Possible Solutions 8 - 13
8
3. Go to the Charms Bar.
4. Select Settings and you will then note that the WiFi icon will read Unavailable.
5. Standard procedure would be to click the connection and enter the PIN number to unlock the connection.
6.
In this instance you will note that the
Mobile broadband
connection will read
Insert a SIM
.

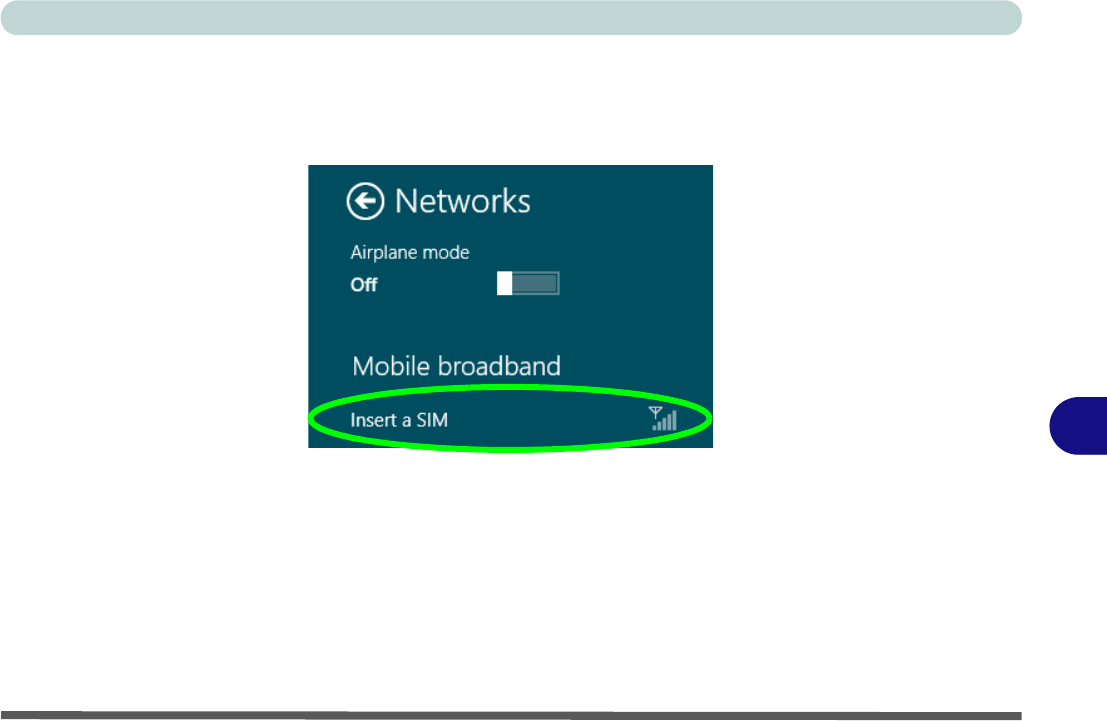

Figure 8 - 2 - Mobile Broadband (Insert a SIM)
7. In this case you will need to
restart the computer
.
8. After system restart you can then connect to the Mobile Broadband as normal.
9. To fully resolve this issue it is recommended that you do not Enable a PIN for the EM820W 3G module.
