7 - 8 Setting Up SATA RAID or AHCI Mode
7
20. You should select two identical disks to form your RAID volume.
21. If you have selected RAID0 (Stripe) then you can adjust the “Strip Size” to your
requirements.
22. If you have selected Recovery then you can adjust the Synchronization to “On
Request” or “Continuous”.
23. Go to Create Volume and press <Enter>.
24. The RAID volume will then be created and the RAID information will be displayed
under Intel(R) Rapid Storage Technology (in the Advanced menu).

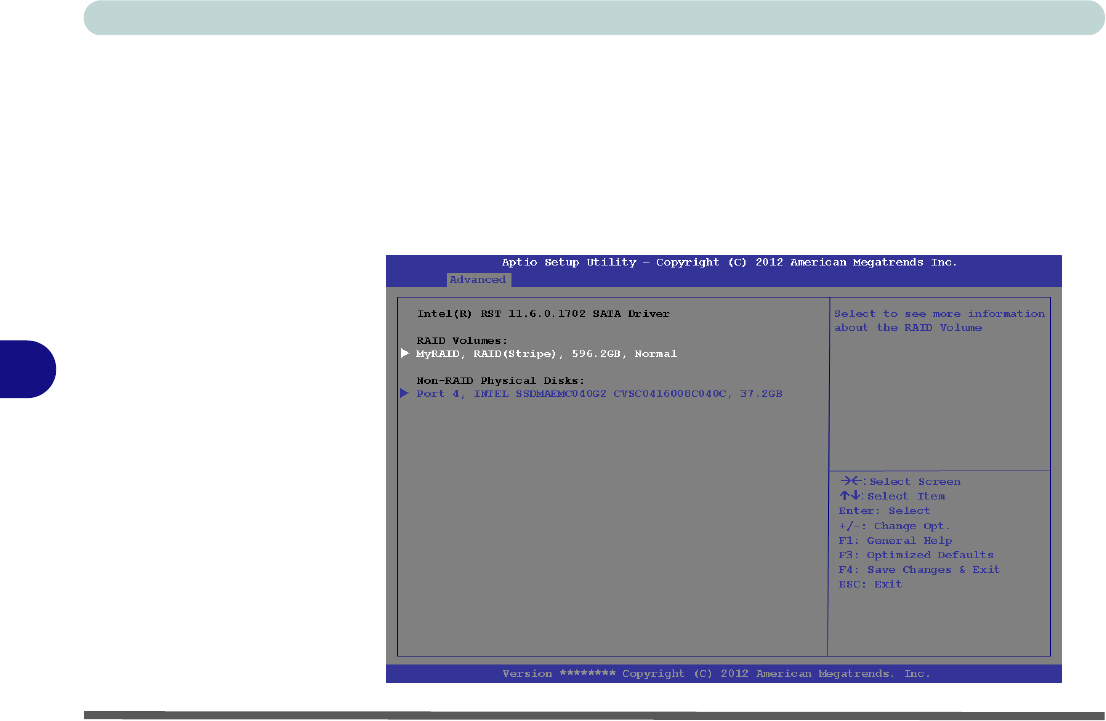

Figure 7 - 4
Created RAID
Information
(Advanced > Intel(R)
Rapid Storage
Technology)
