1-30

Pin No.

Signal

CTS

RXD

TXD

RTS

+5V

Red : 0V

Orange : RXD

Yellow : TXD

Brown : +5V

12345678

* Jump pins, 1(CTS) and 4(RTS).

D-sub 9pin ( )

Signal

RTS

TXD

RXD

CTS

+5V

Barcode Reader

Red : 0V

Orange : RXD

Yellow : TXD

Brown : +5V

12345678

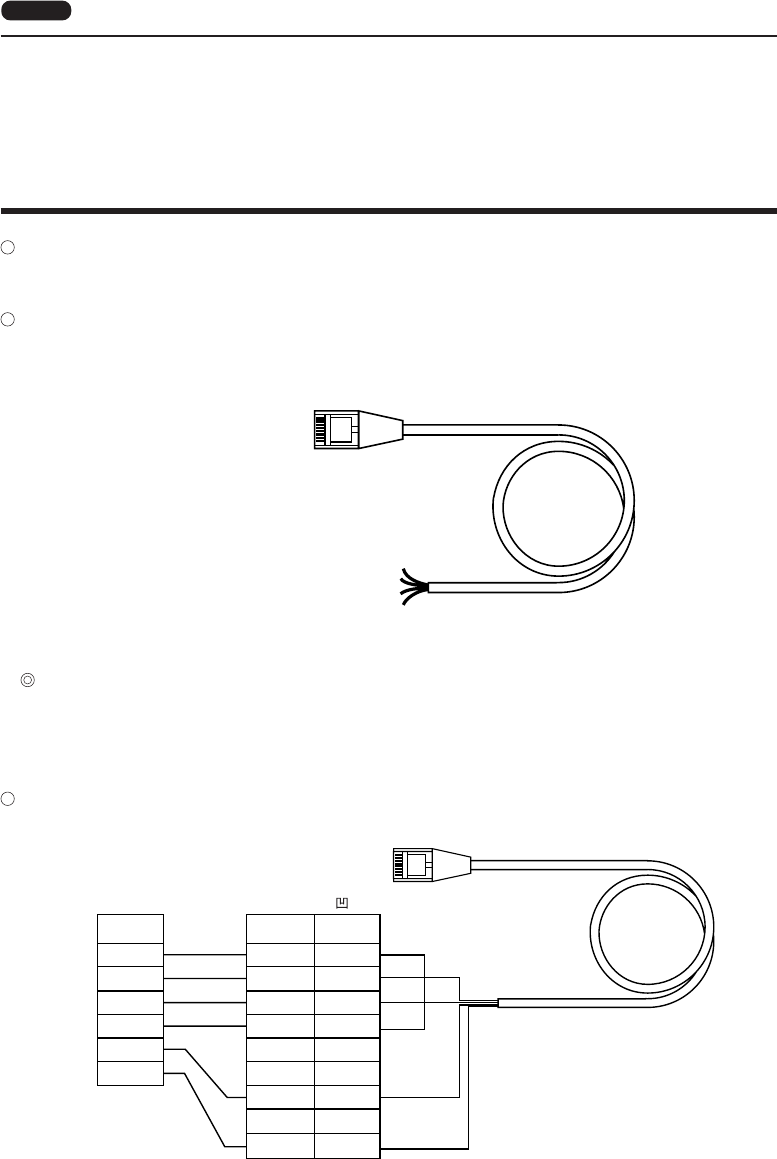

Barcode Reader Interface

It is possible to receive the signal from a barcode reader by connecting a barcode reader to ZM-62E via the

modular jack (MJ1/MJ2) of ZM-62E.

To connect a barcode reader to ZM-62E via MJ1/MJ2, use the cable which is the cable for barcode reader

(ZM-80BC: order product).

Length : 3m

Notes on Connection

• In case of using the barcode reader which uses the CTS and RTS control, the barcode reader may

not work normally without jumping RTS and CTS.

• The output power supply (+5V) is max. 150mA. (Refer to page 1-26.)

When the barcode reader connected to ZM-61E is used, connect it to ZM-80BC by the following cable.

1 Barcode Reader Interface
